When I am out of town, I will try to cover the class online, at the Google-Meet link given below:

Tuesdays 2 PM to 3:15 PM in Clare 208
Thursdays 2 PM to 3:15 PM in Clare 208



Elasticity

SUBMENU


The PDF files are given just below. The content when you scroll are image files. You cannot search them - for search download the pdf files.

Elasticity: 01A_Elastic Constants
Elasticity: 01B_The Mohr Circle
Elasticity: 01C_Periodic Table
Elasticity: 01D_Carbon
Elasticity: 01E_Spring Models

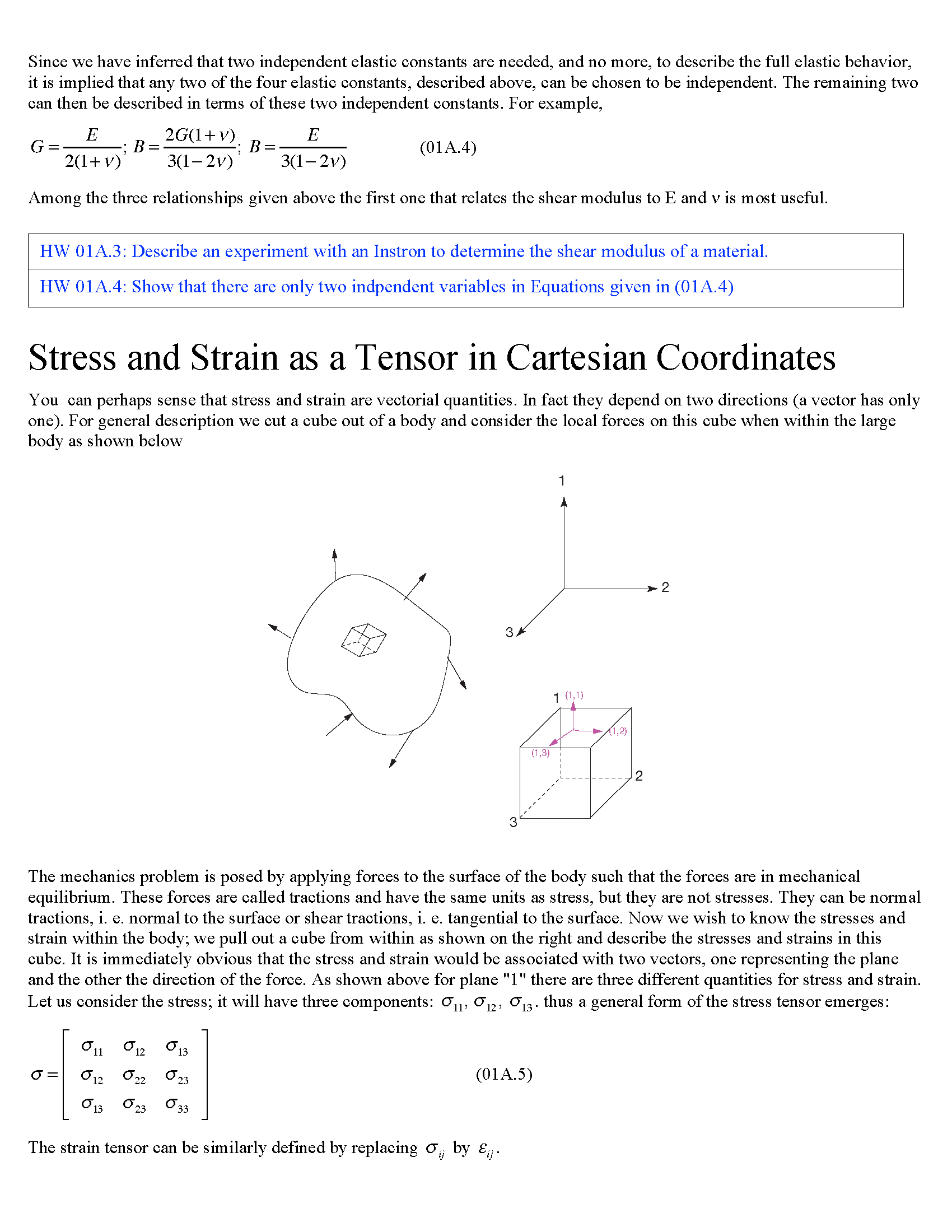

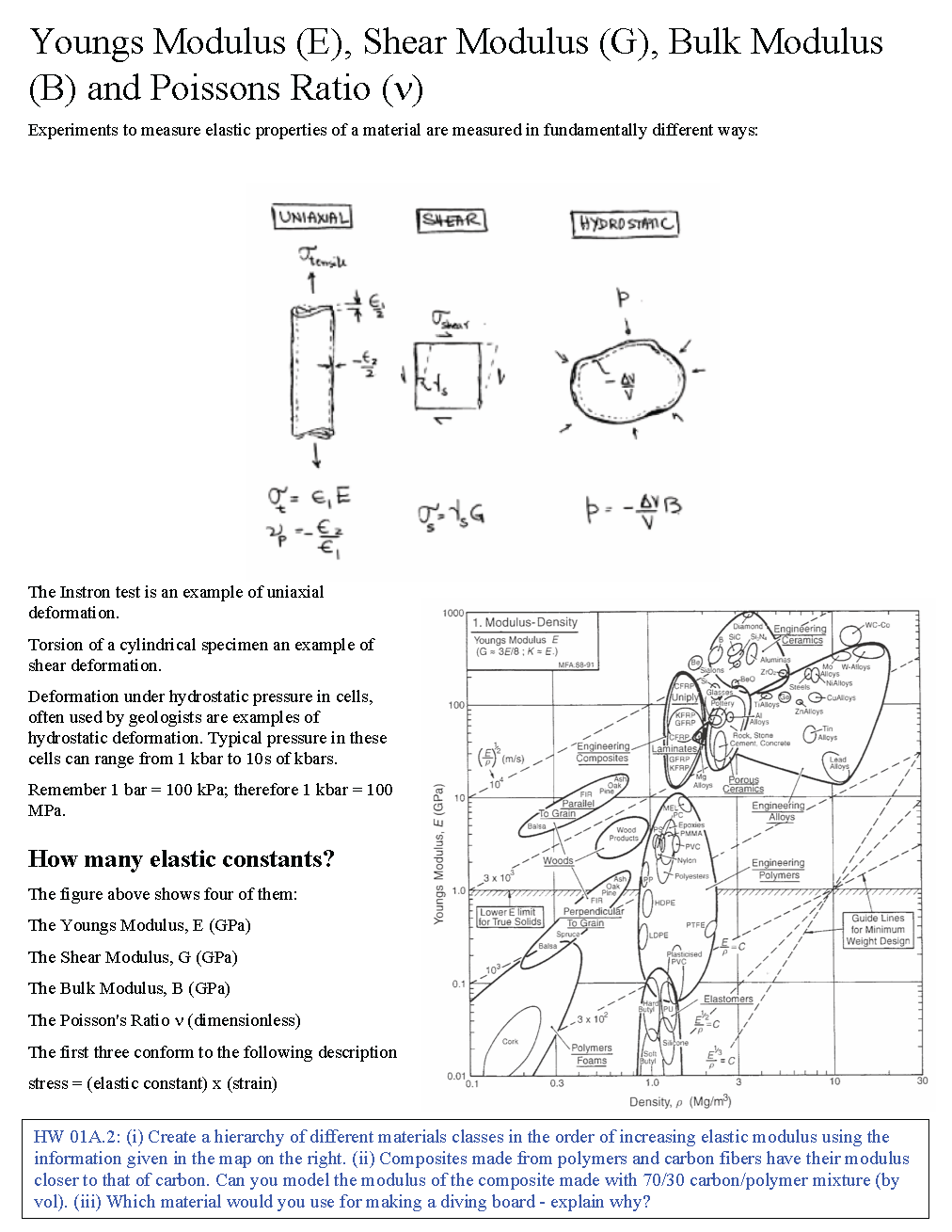

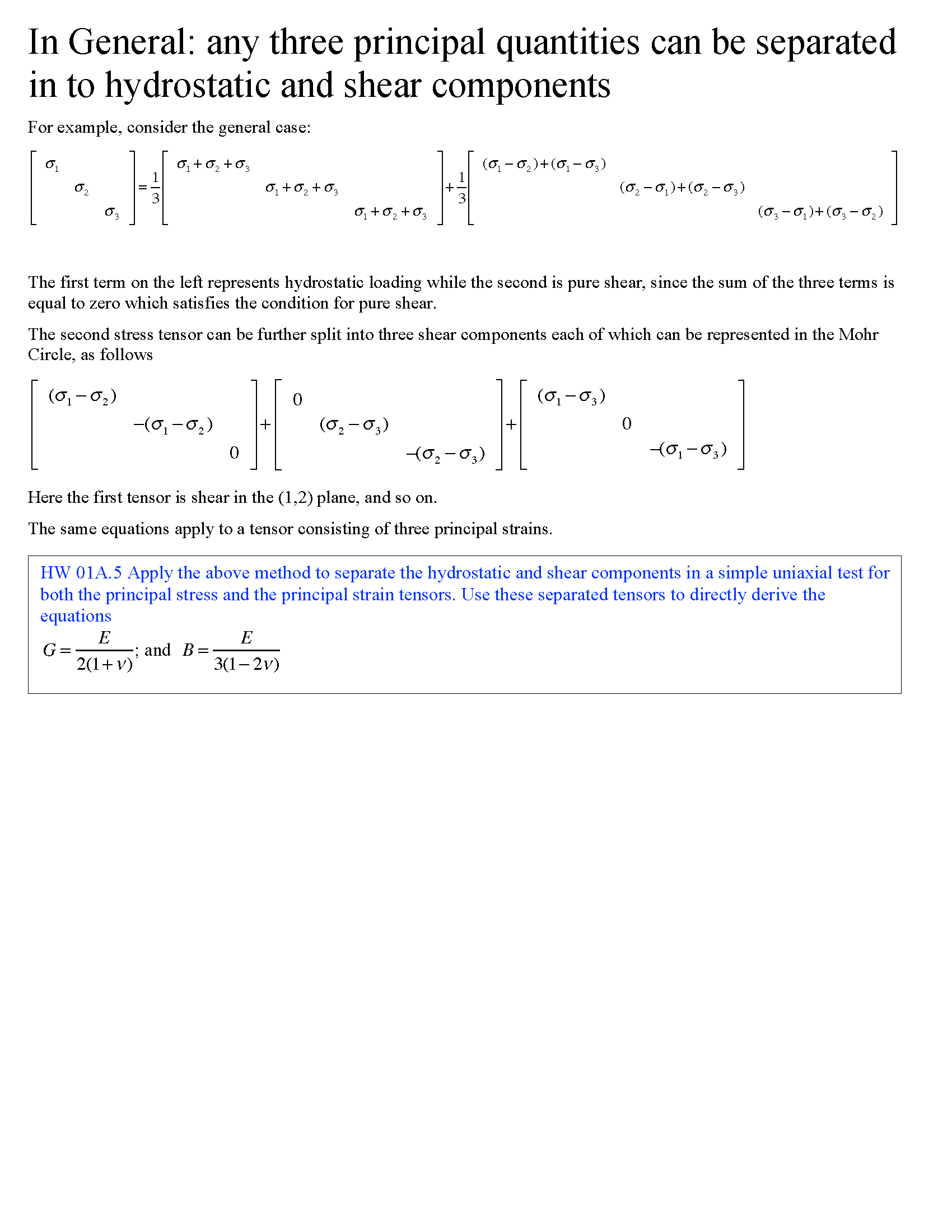

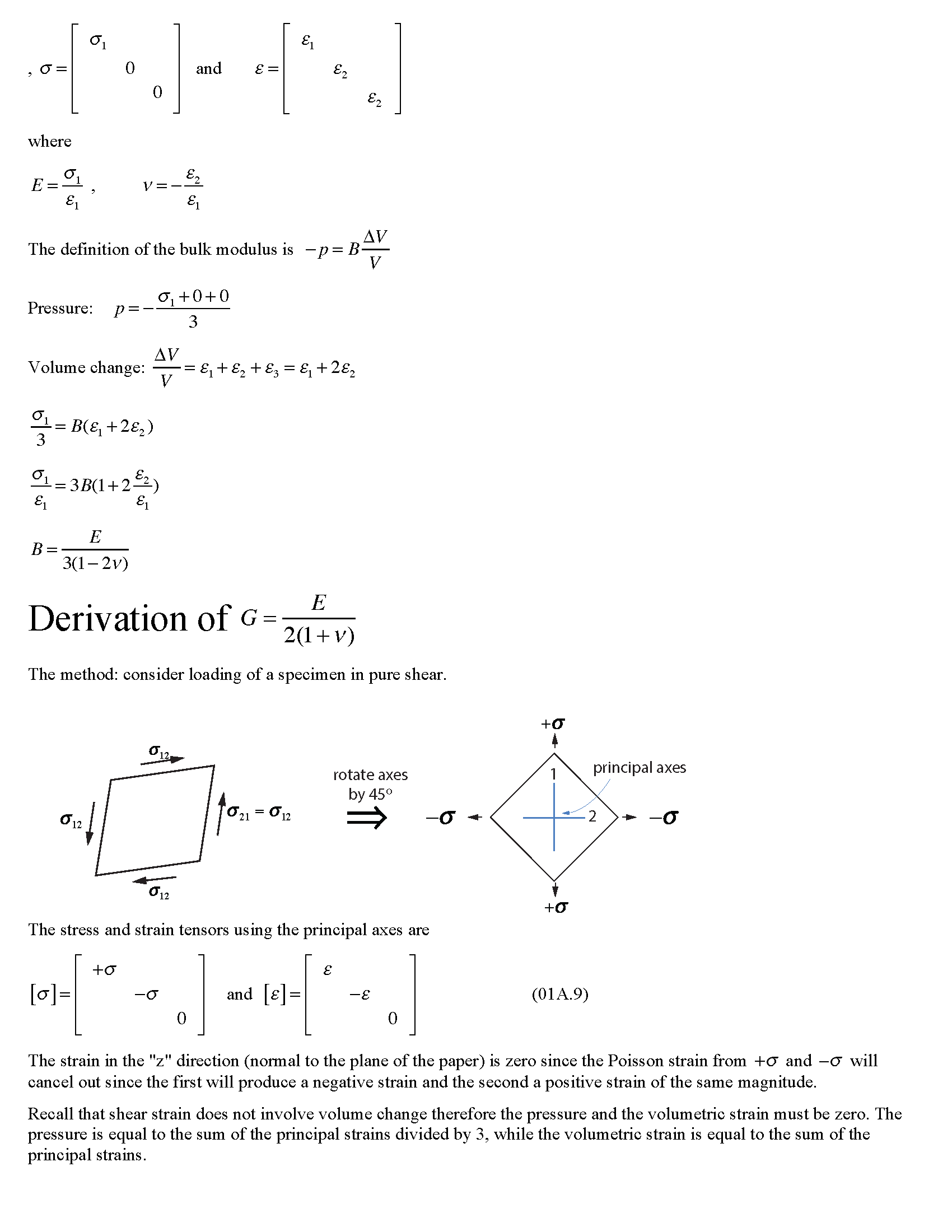

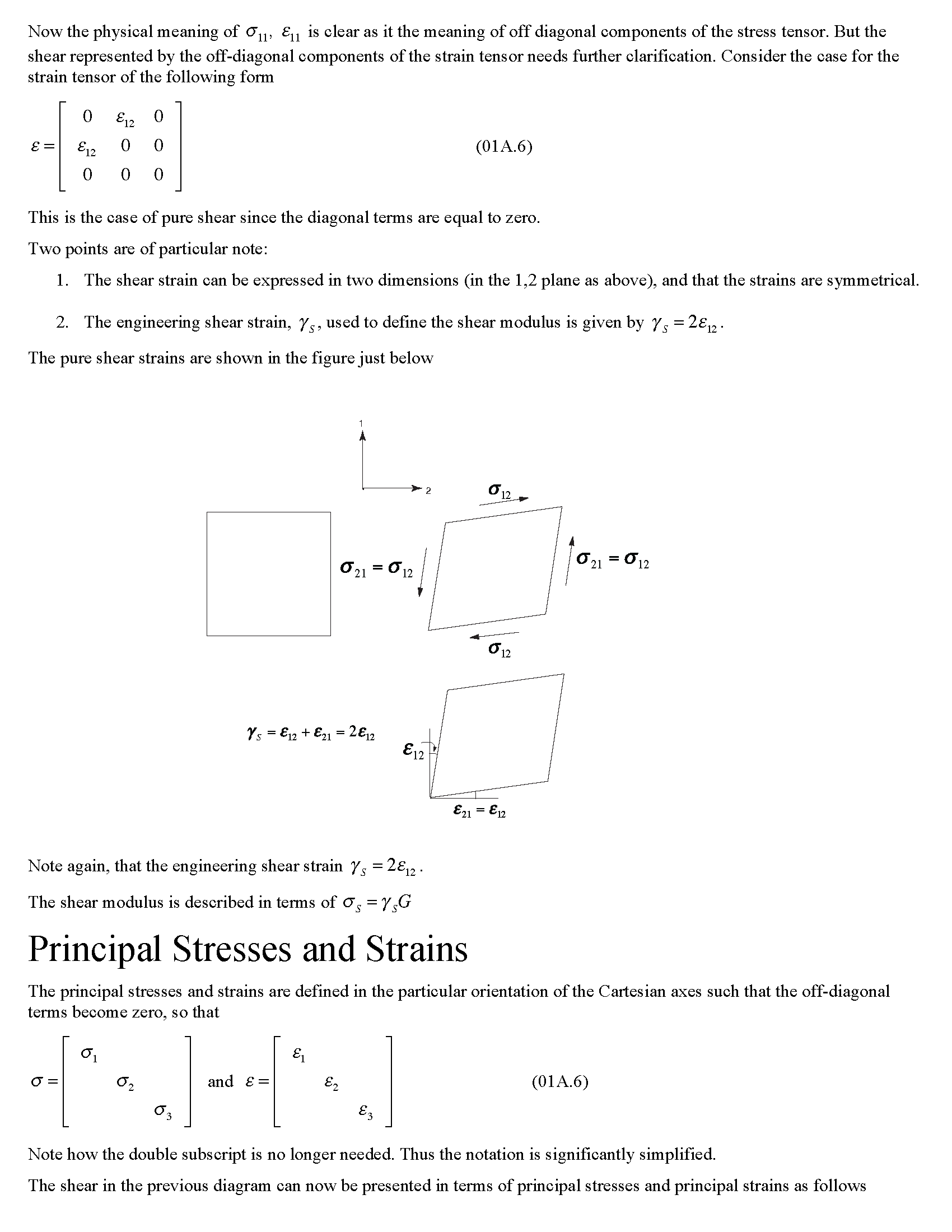

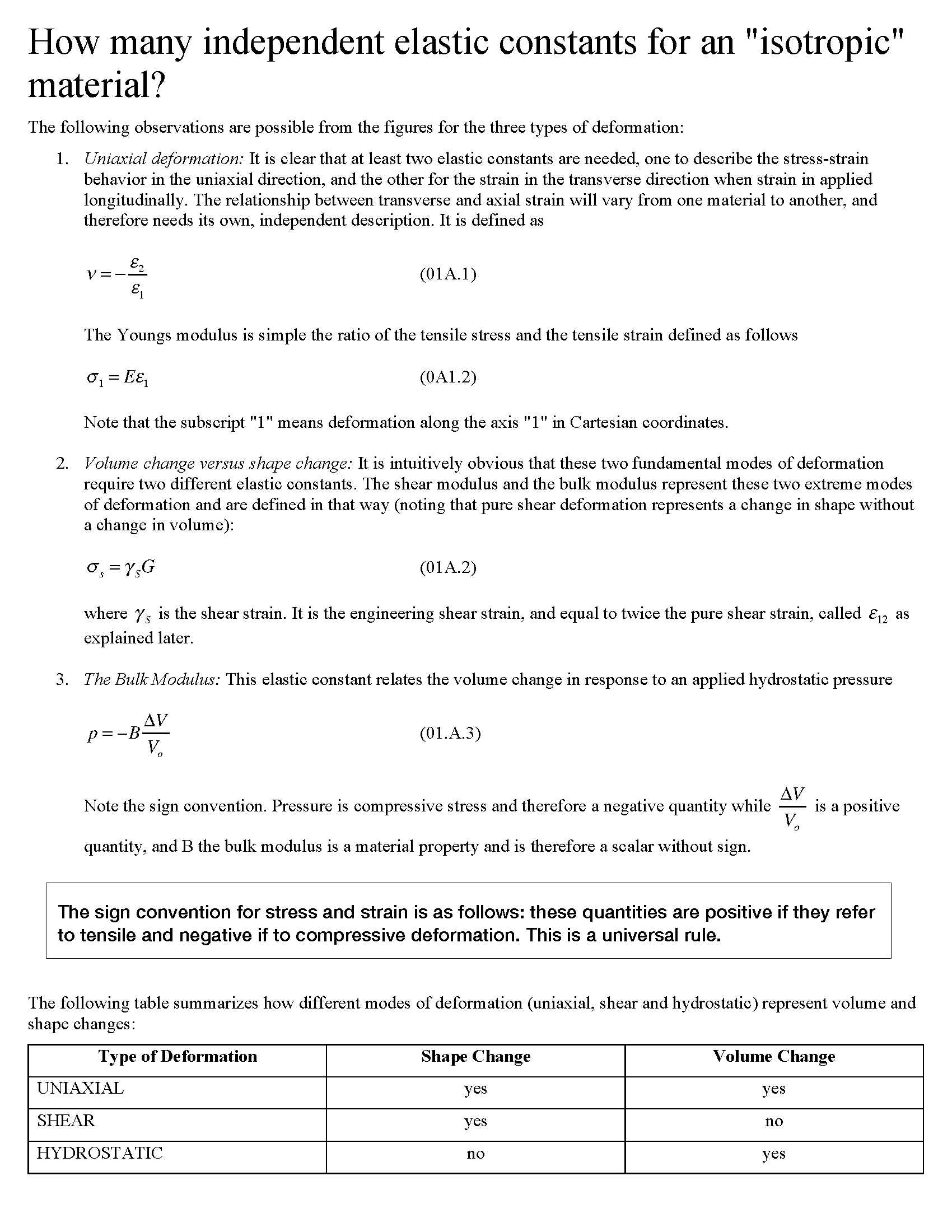

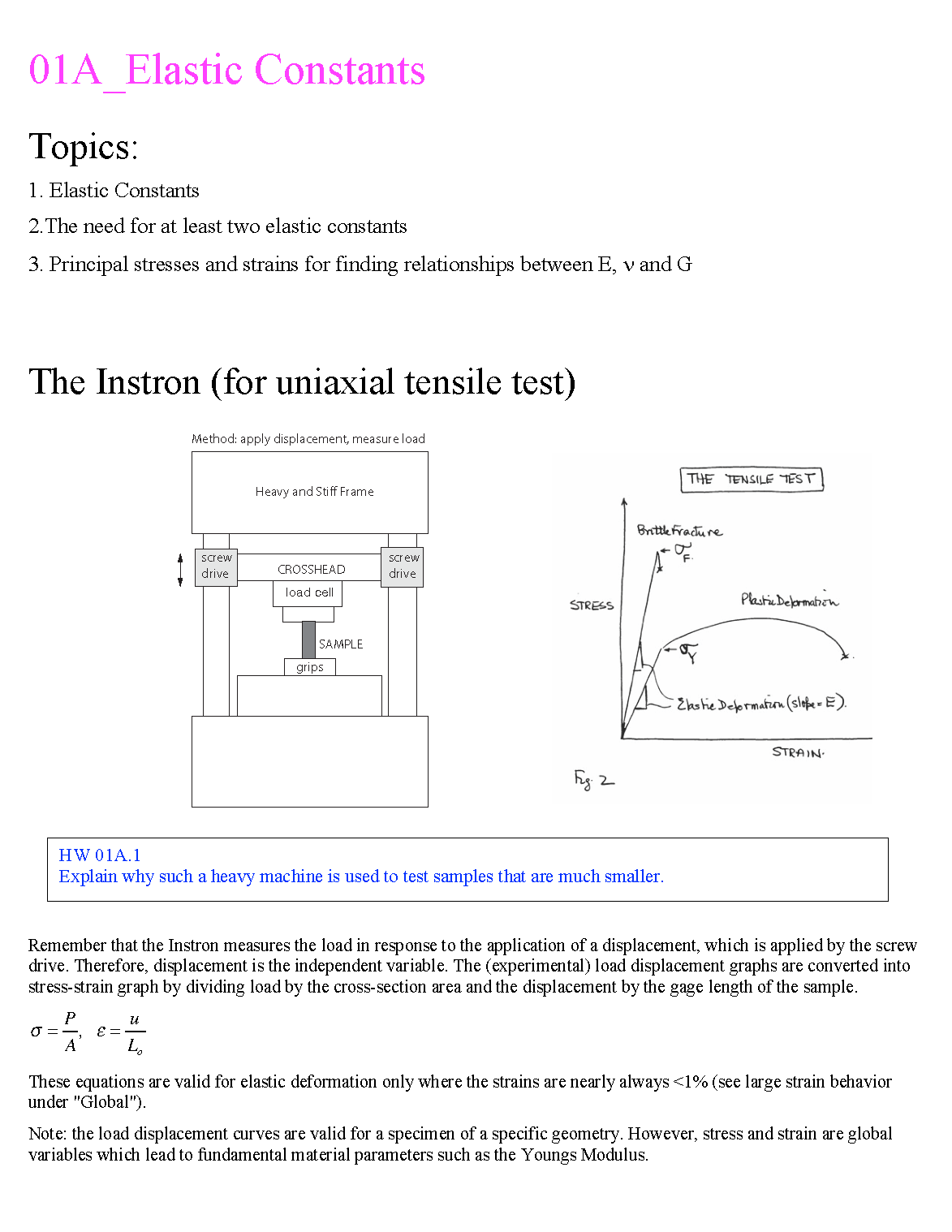

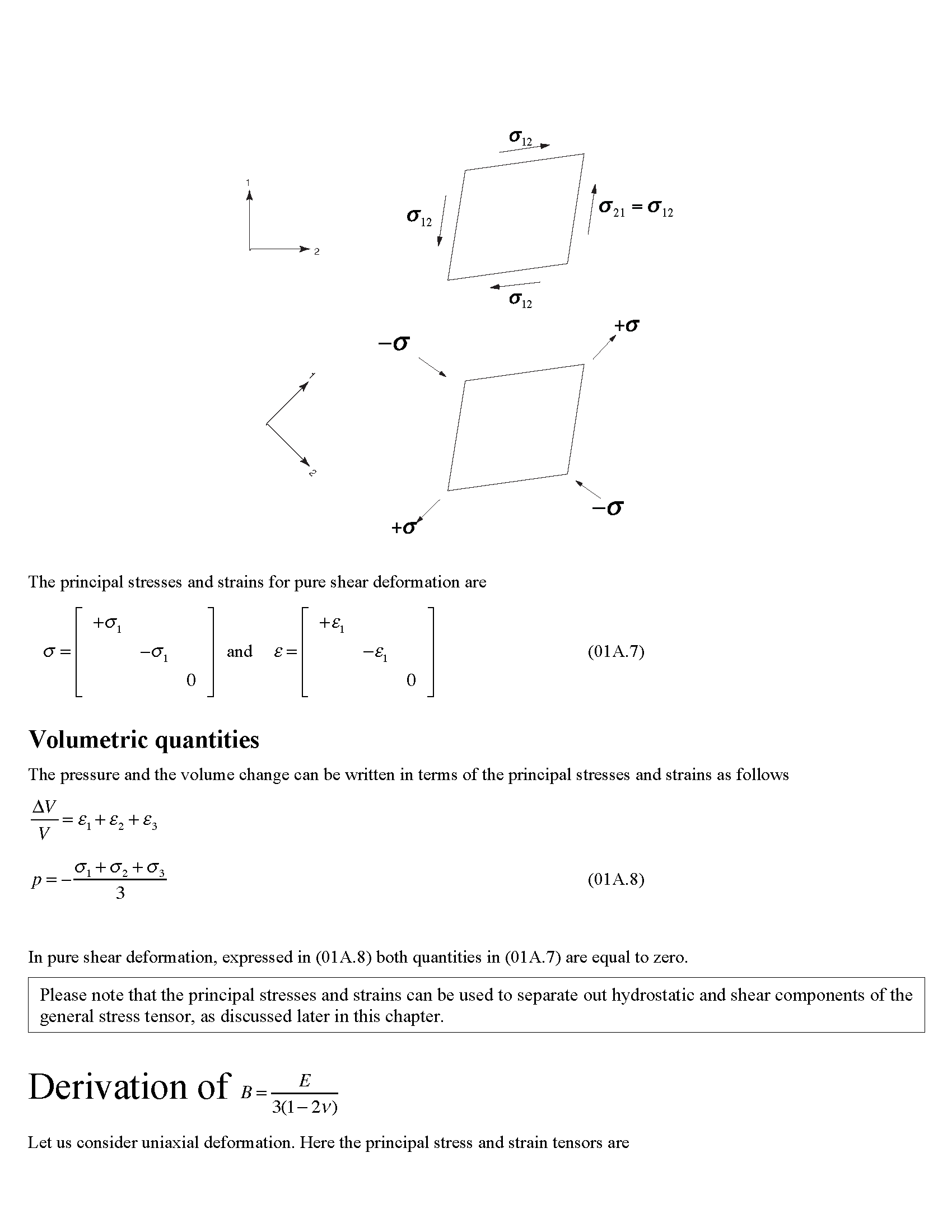

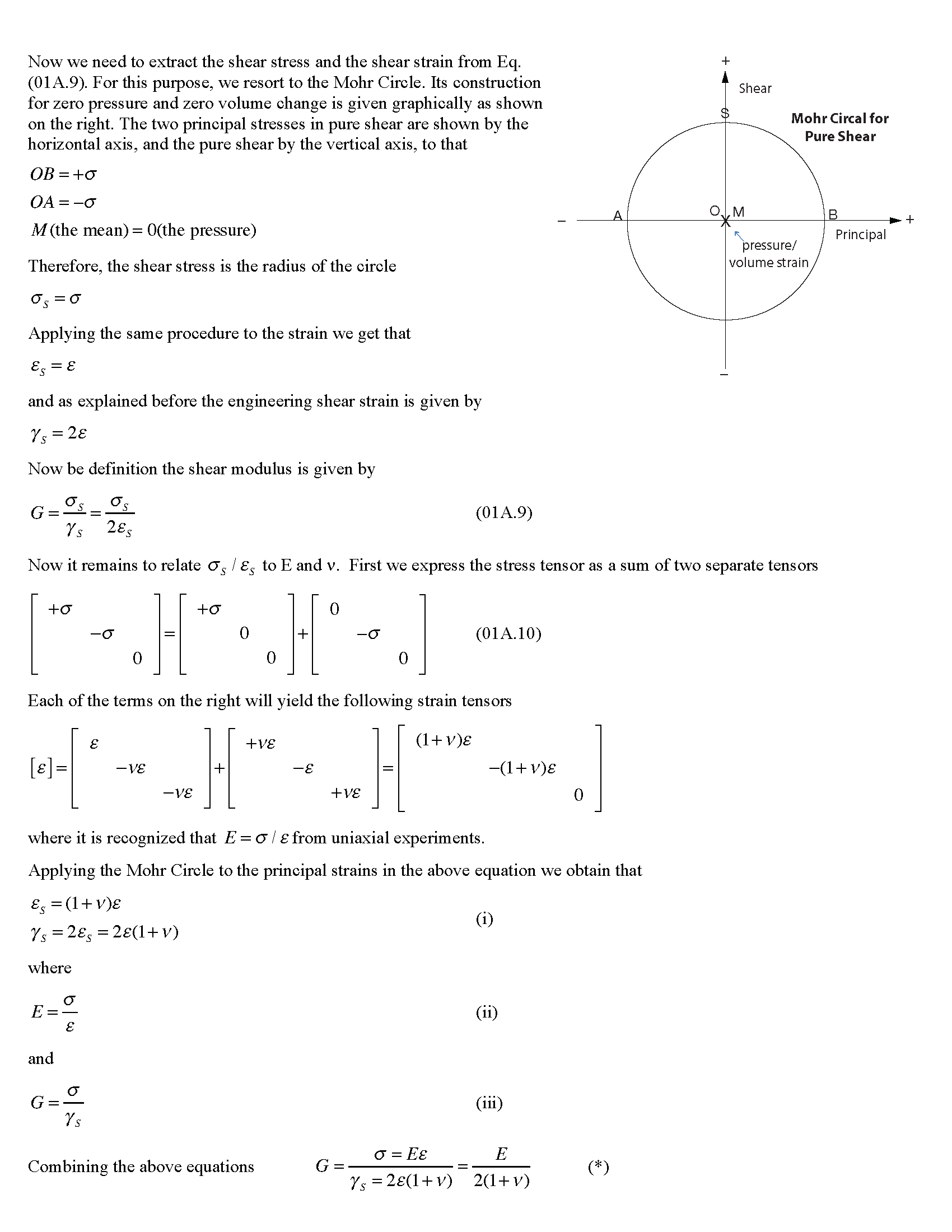

constants-1 constants-2 constants-3 constants-4 constants-5 constants-6 constants-7 constants-8 constants-9
GO TO TOP

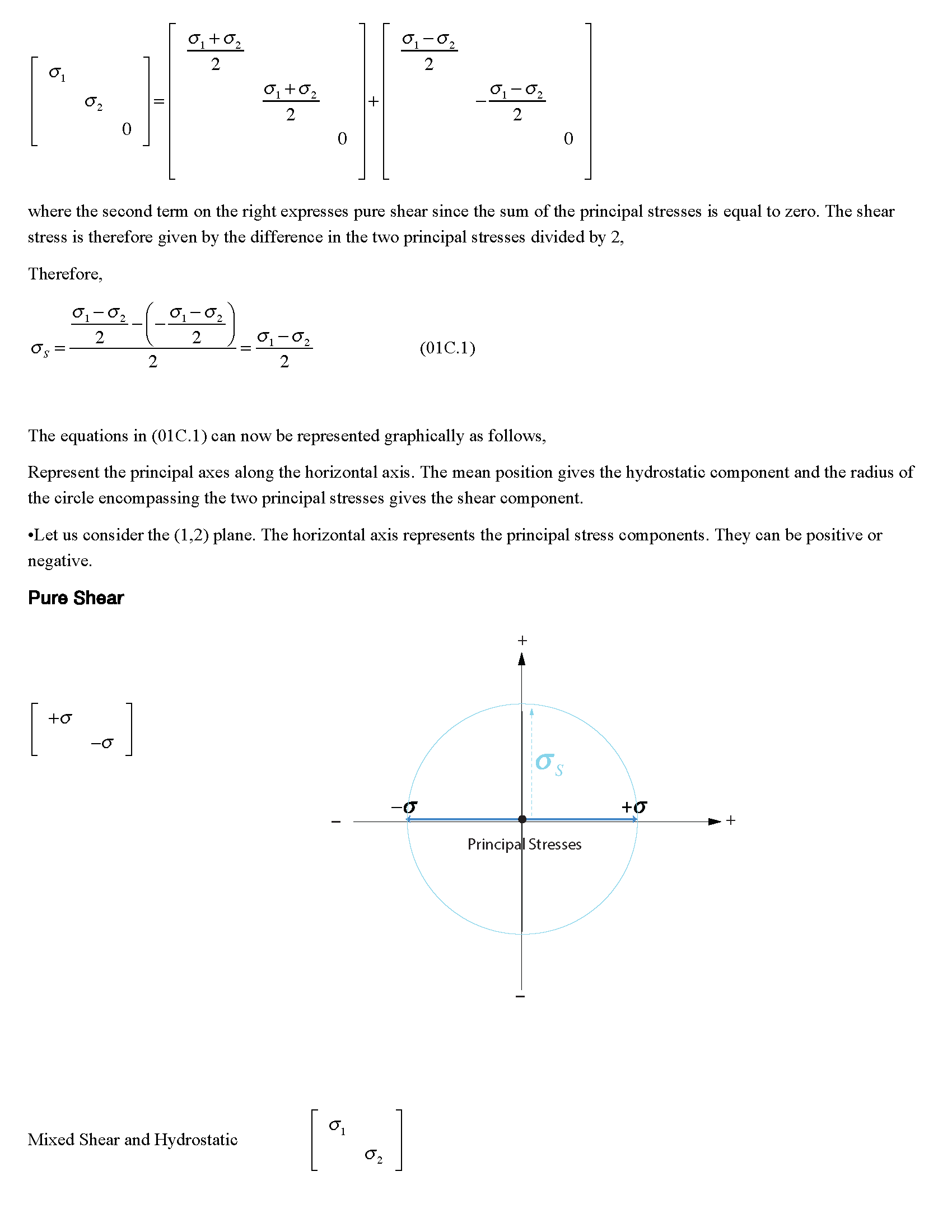

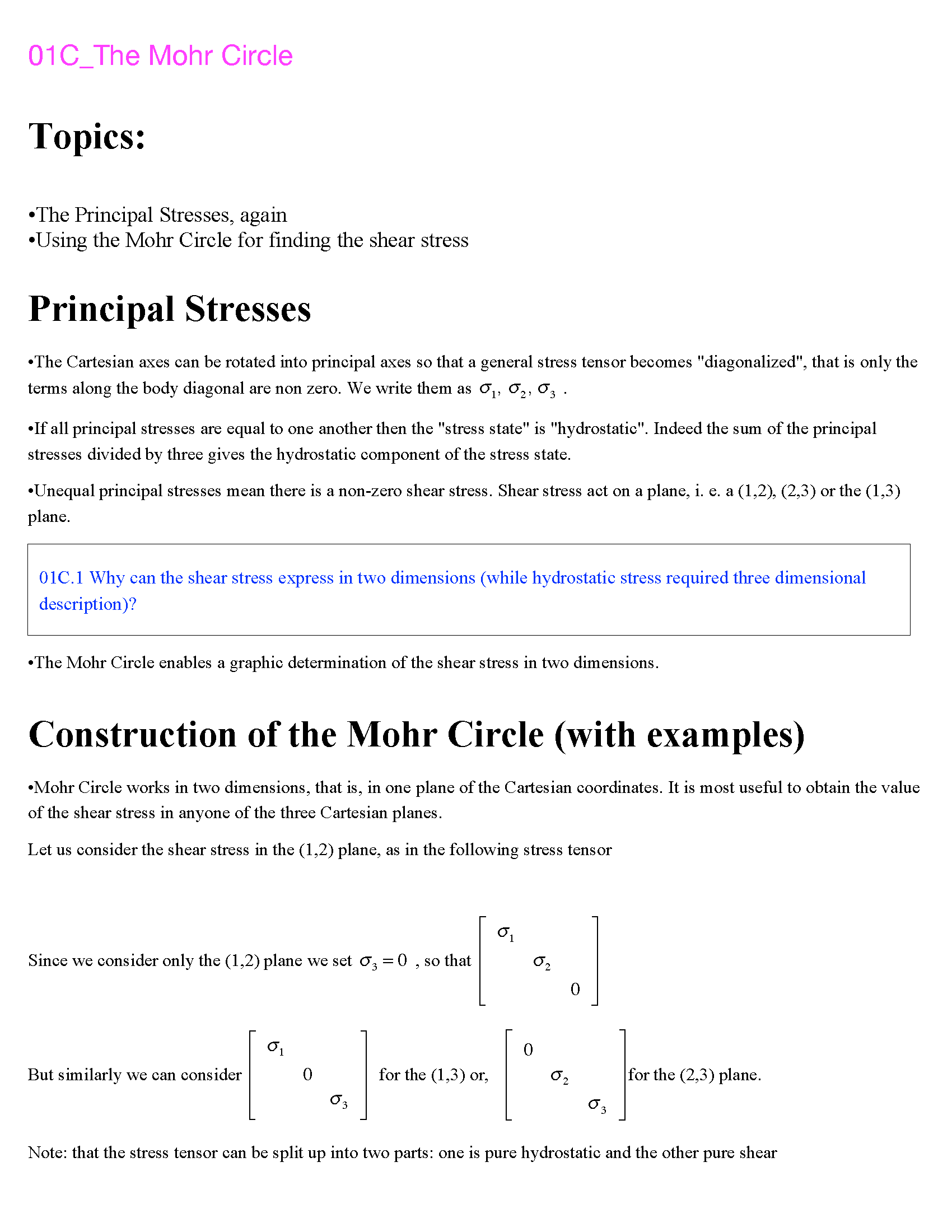

mohr-1 mohr-2 mohr-3
GO TO TOP

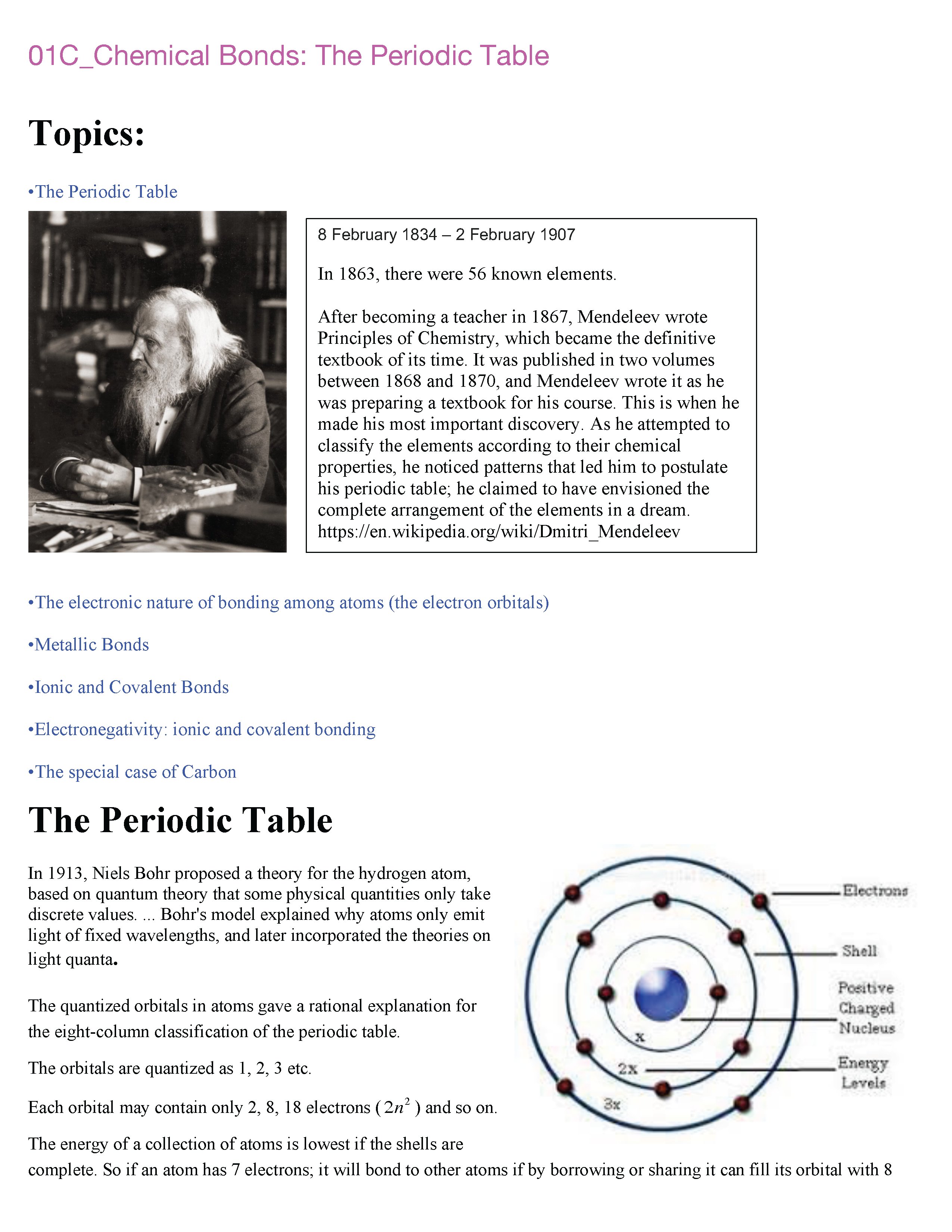

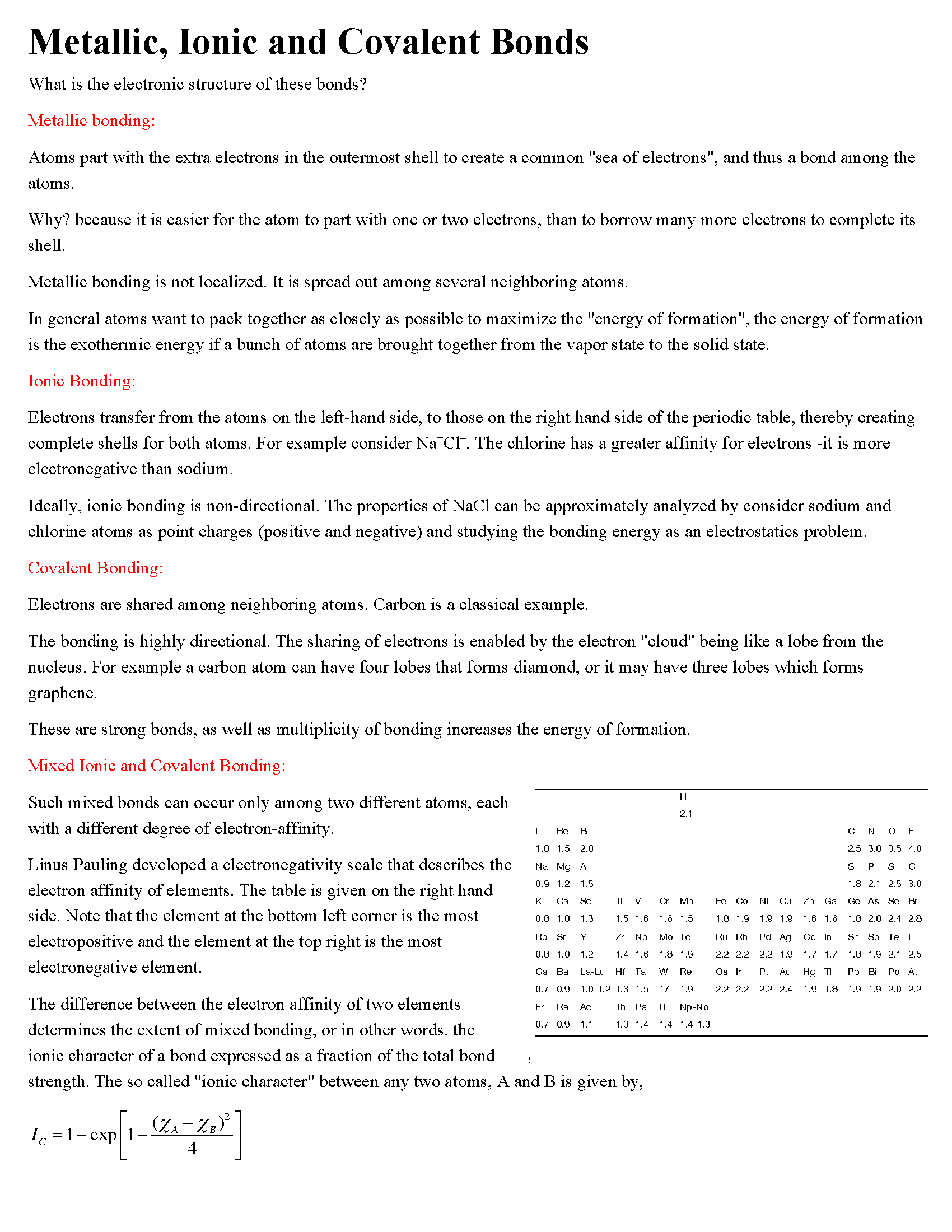

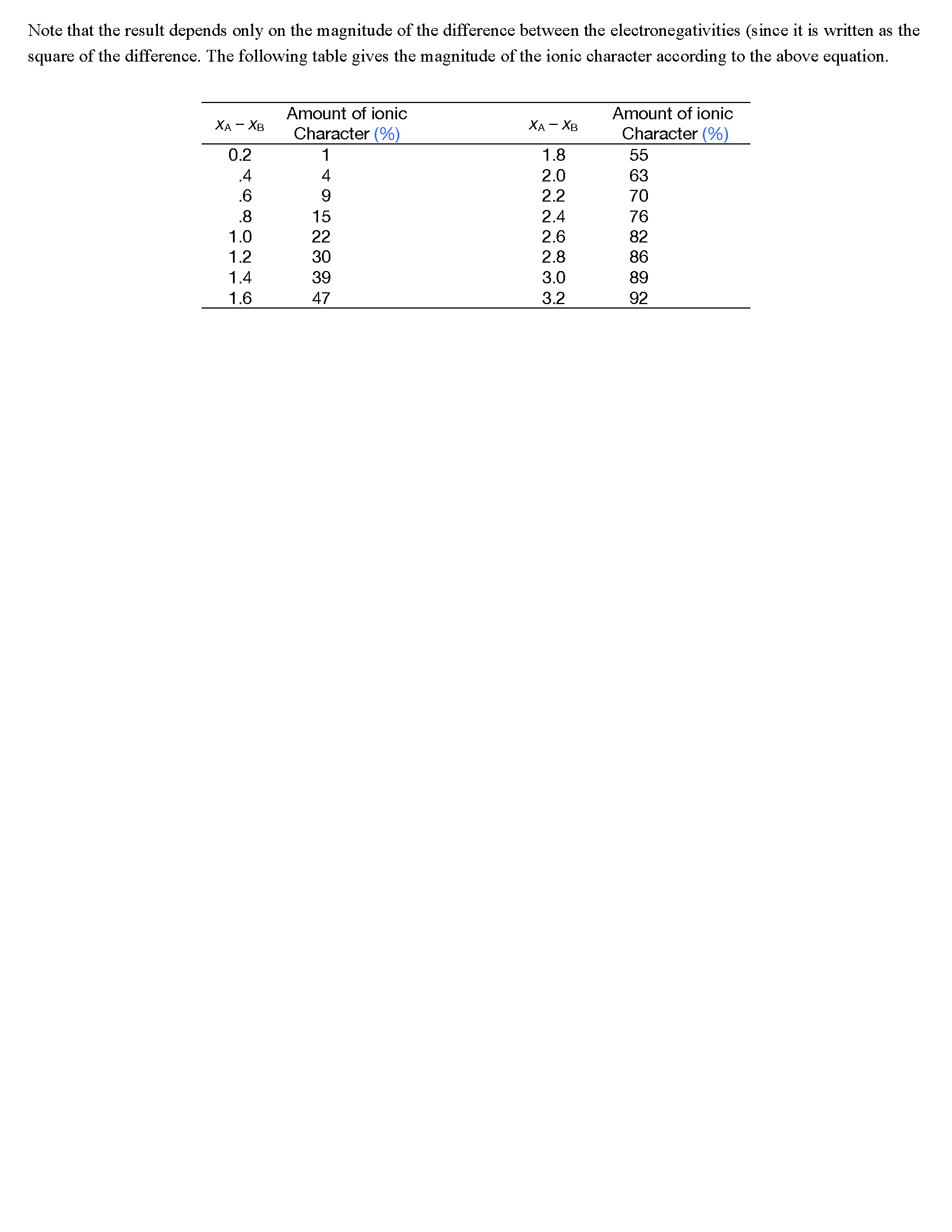

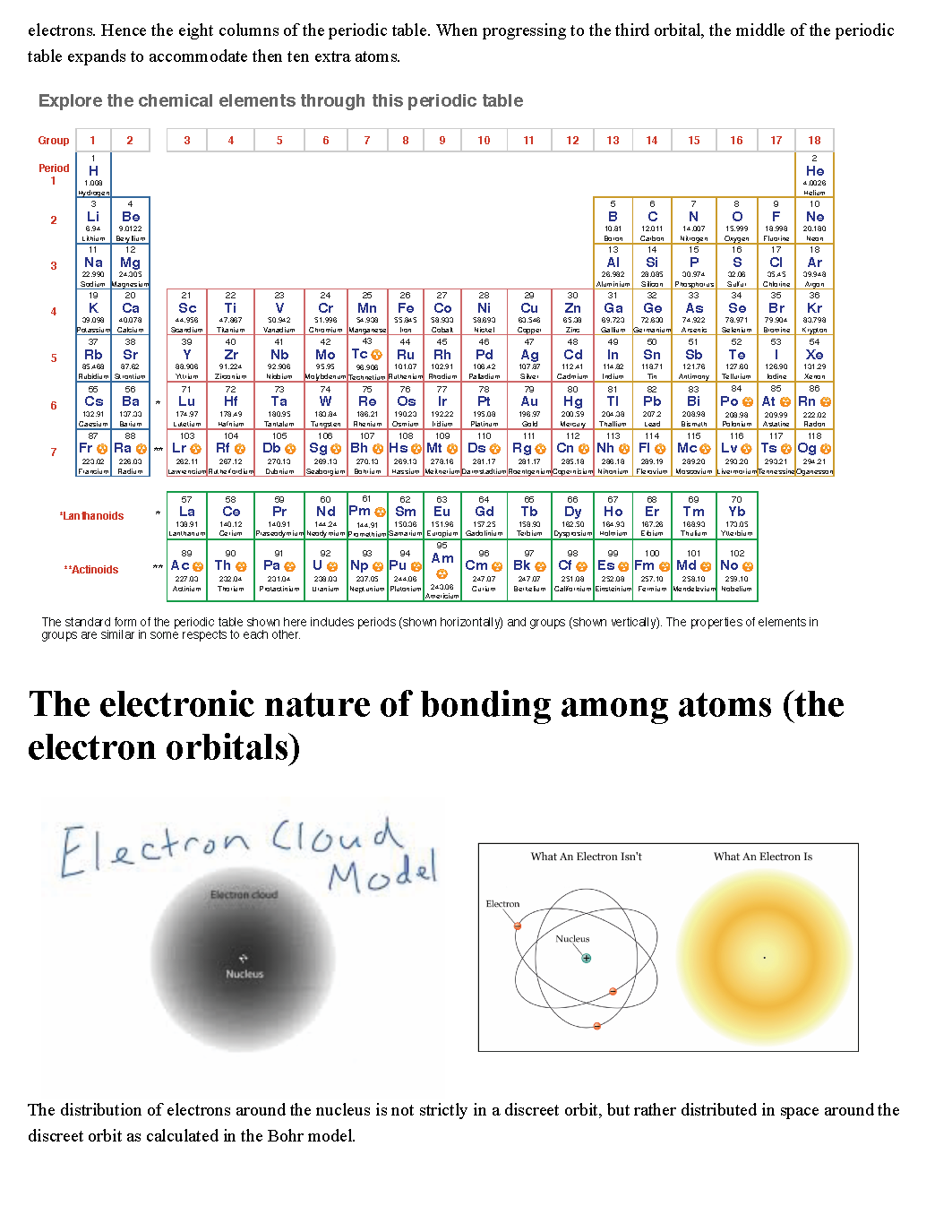

periodic-1 periodic-2 periodic-3 periodic-4
GO TO TOP

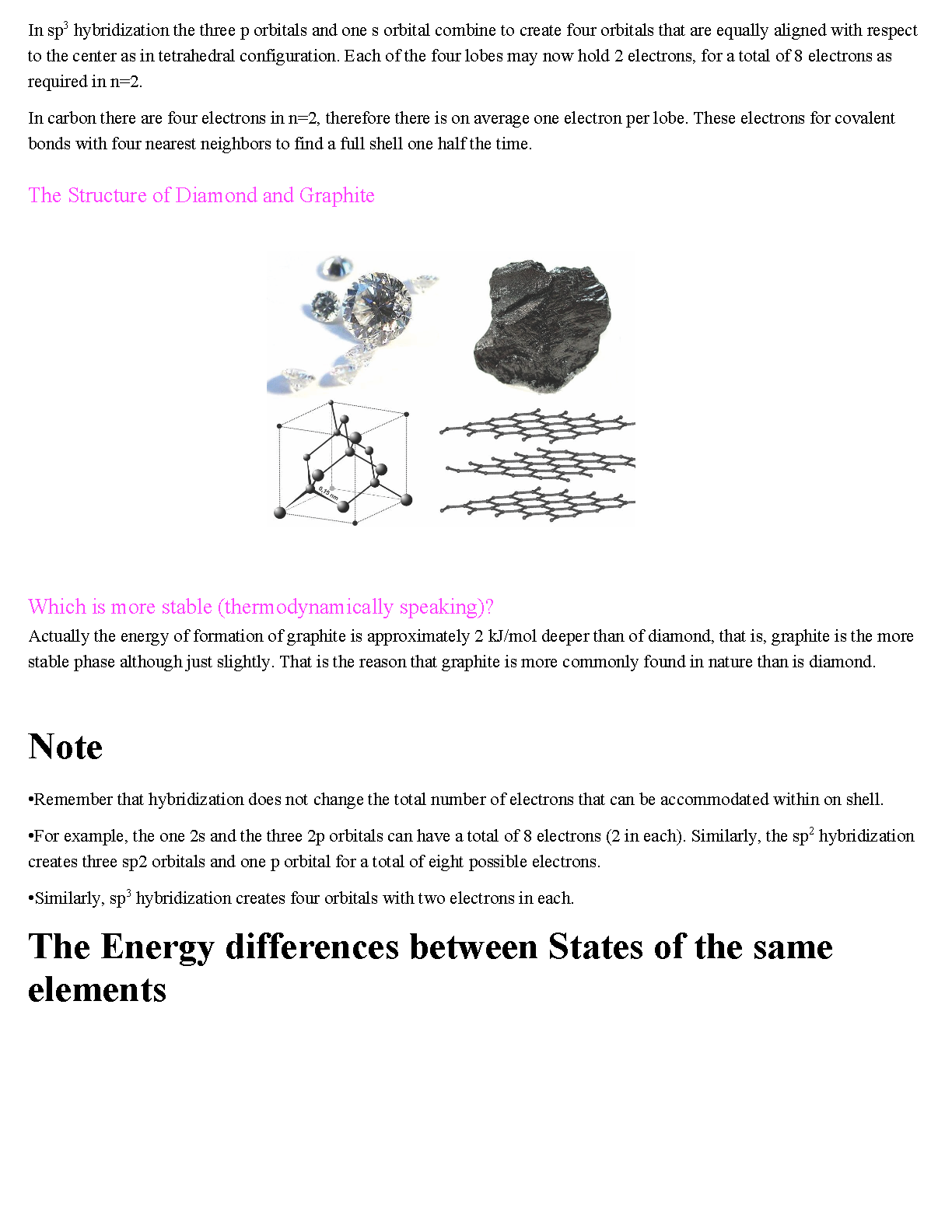

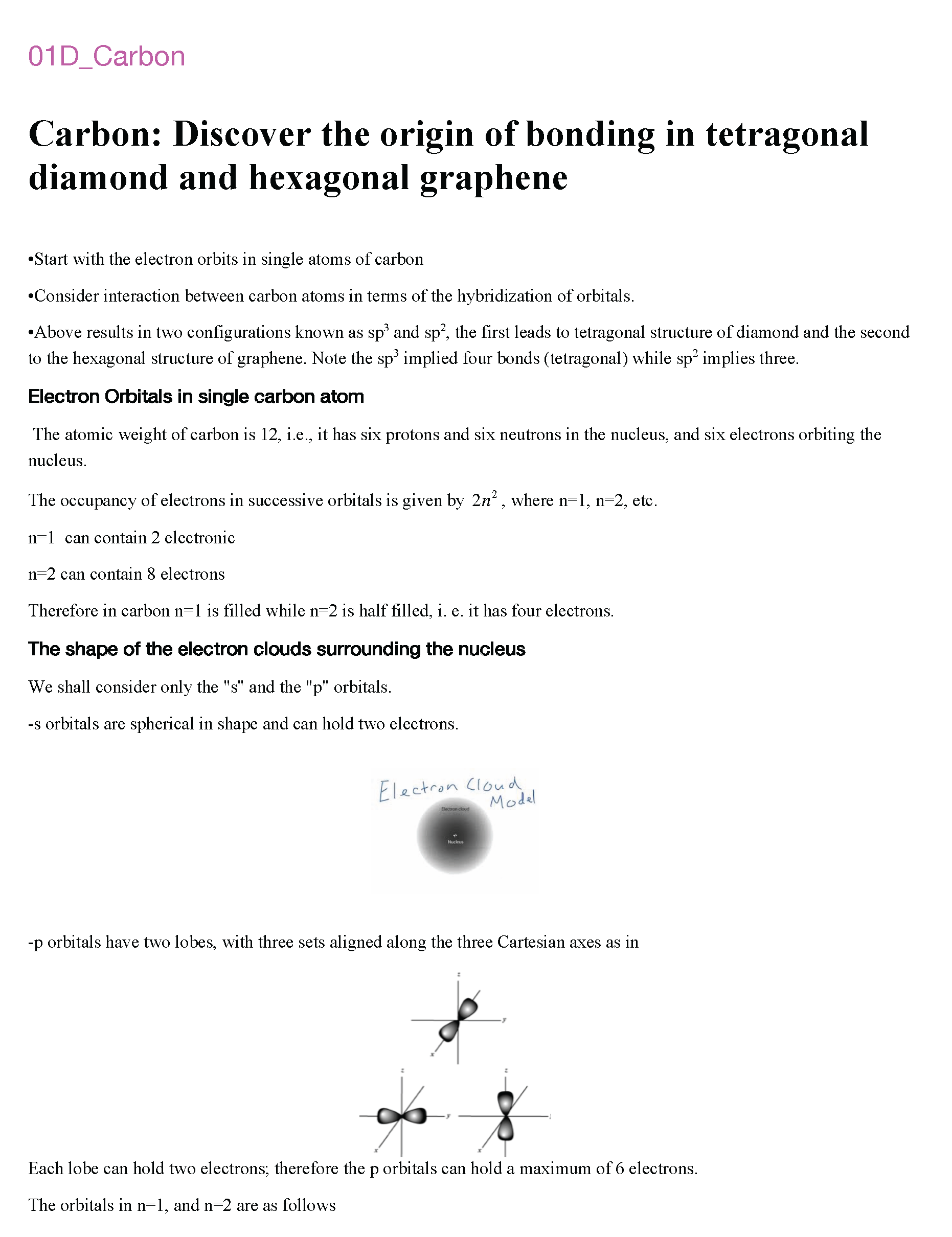

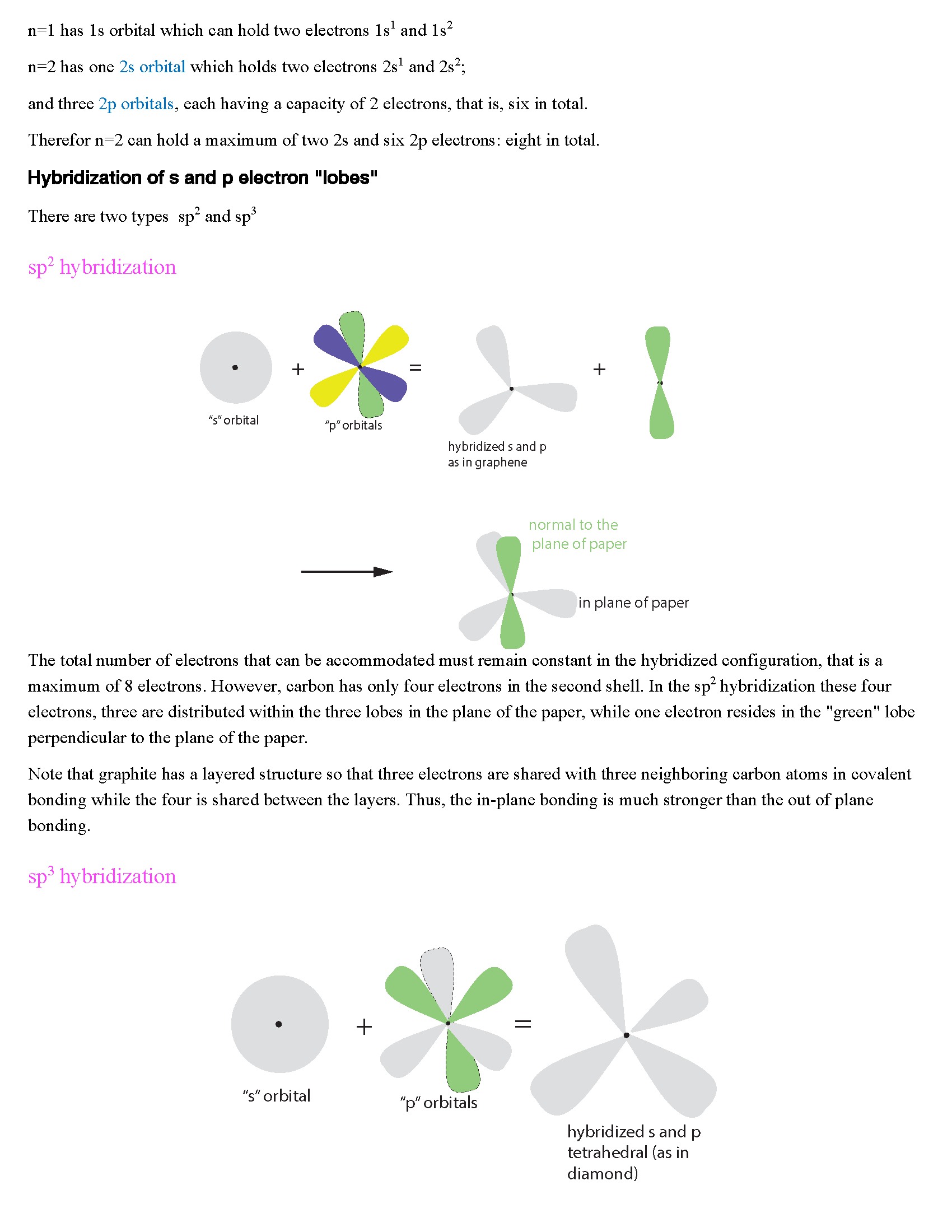

carbon-1 carbon-2 carbon-3
GO TO TOP

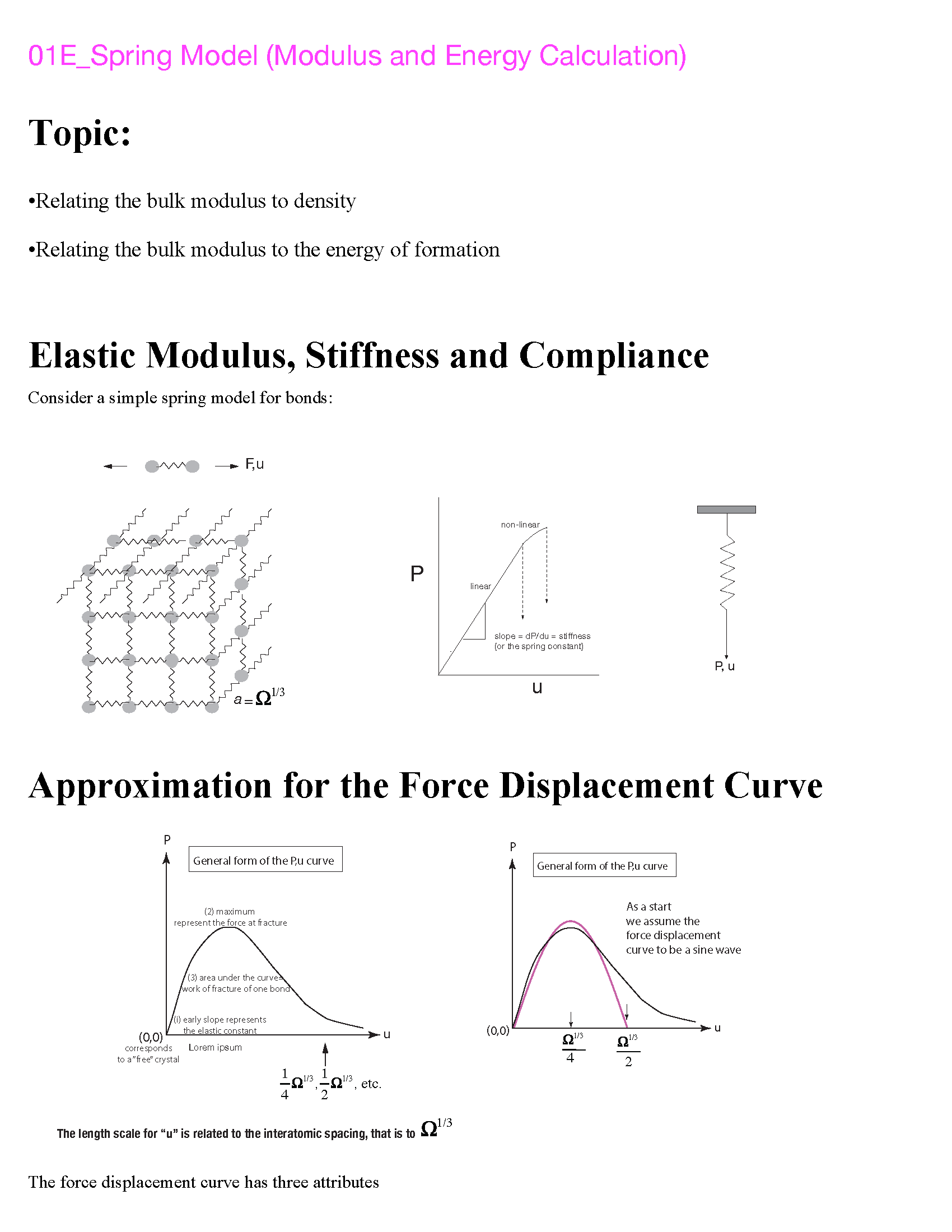

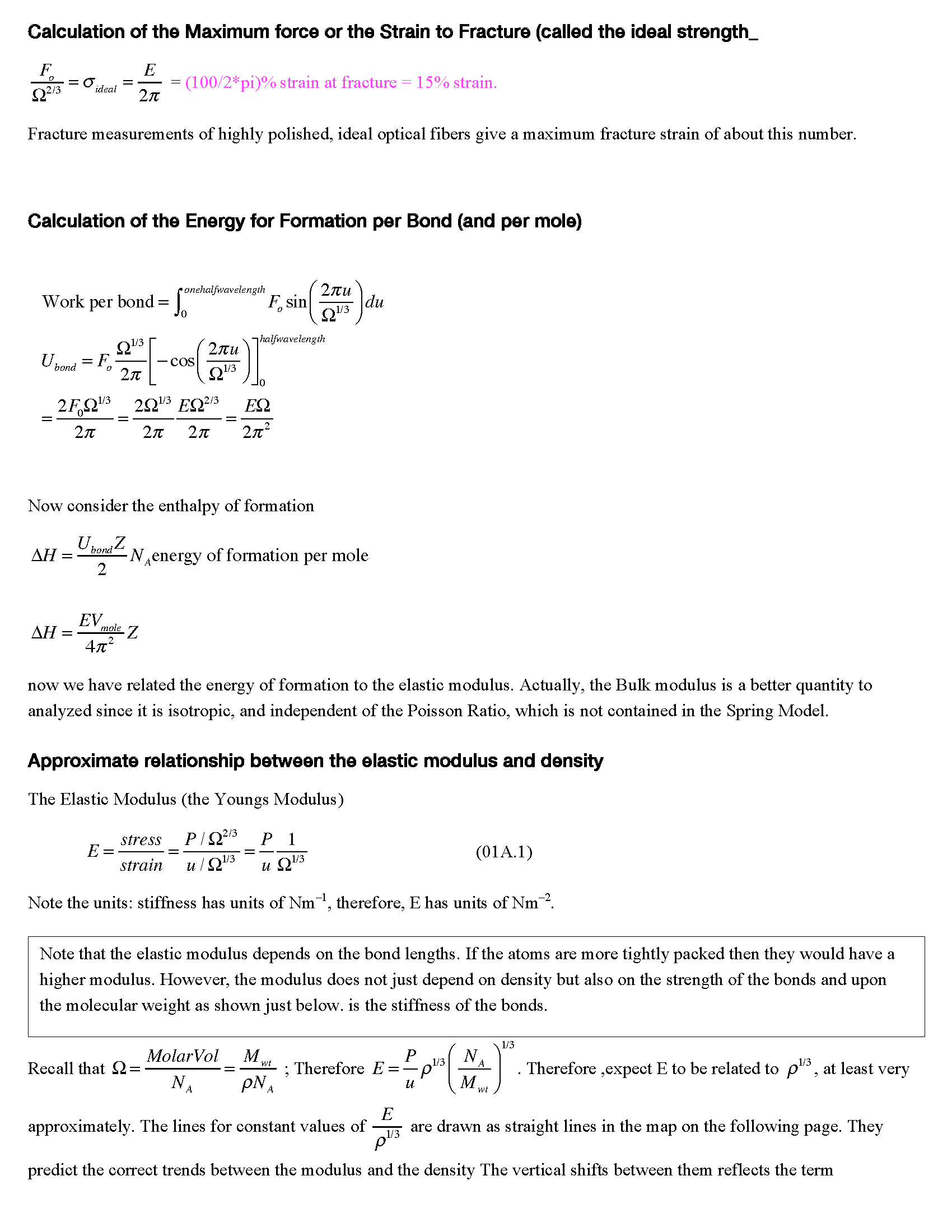

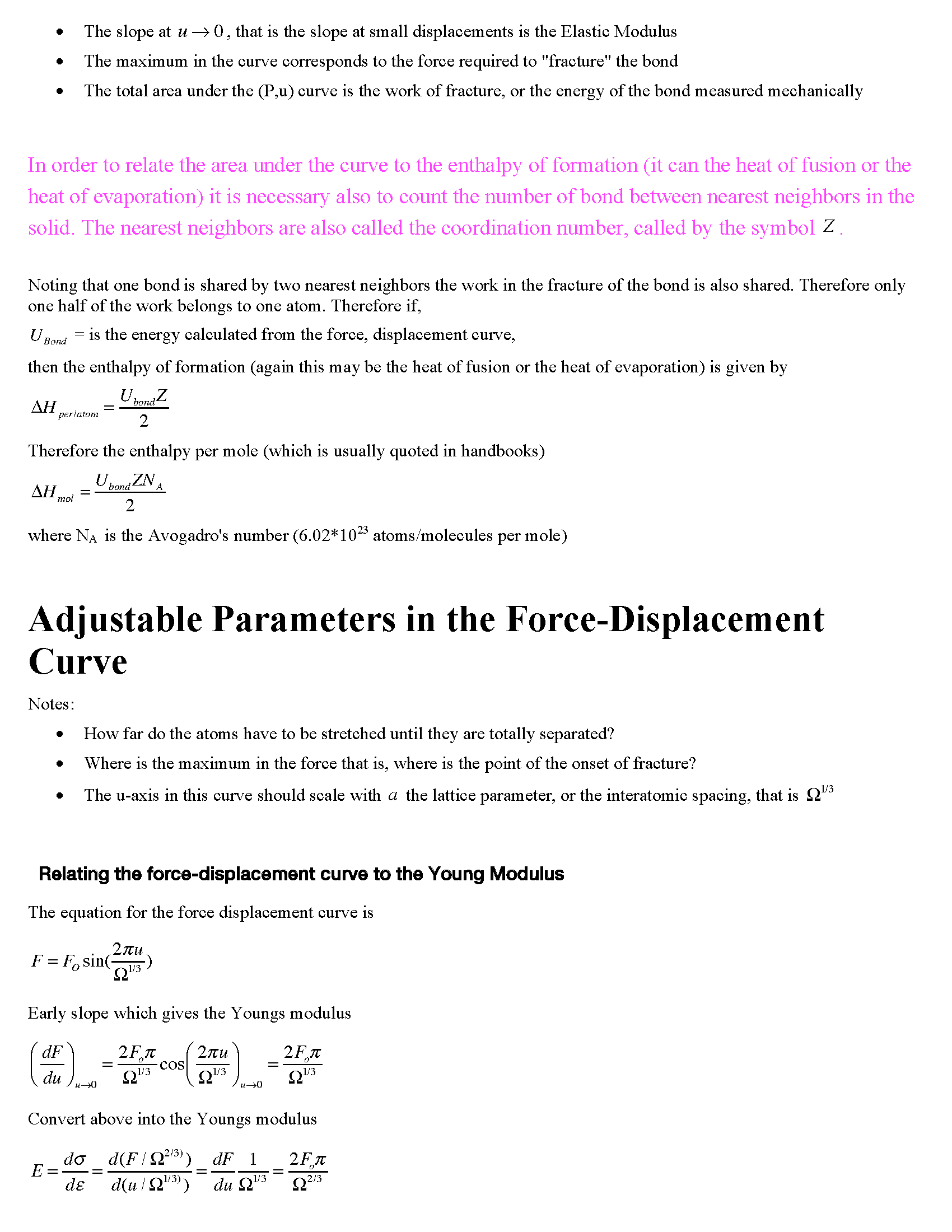

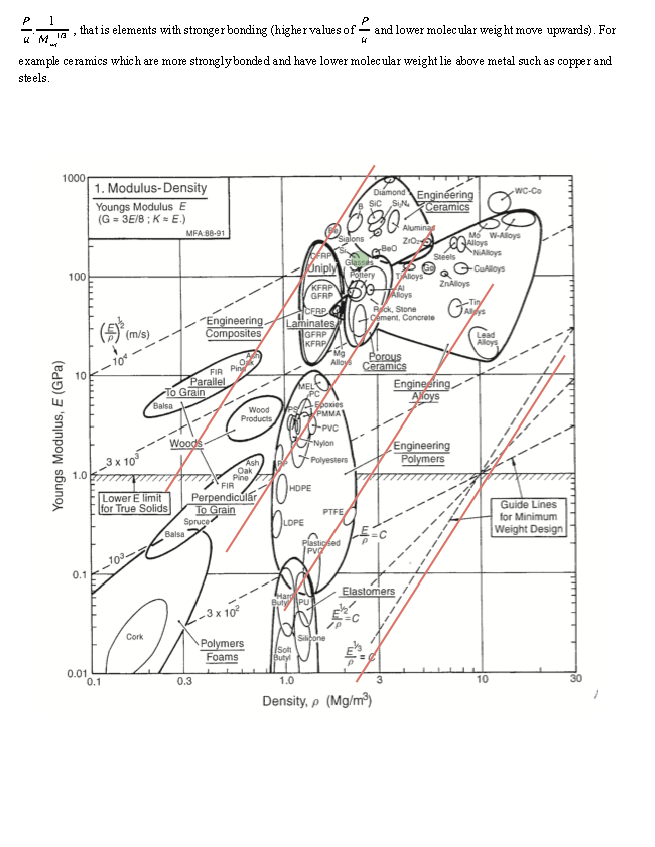

springs-1 springs-2 springs-3 springs-4
GO TO TOP

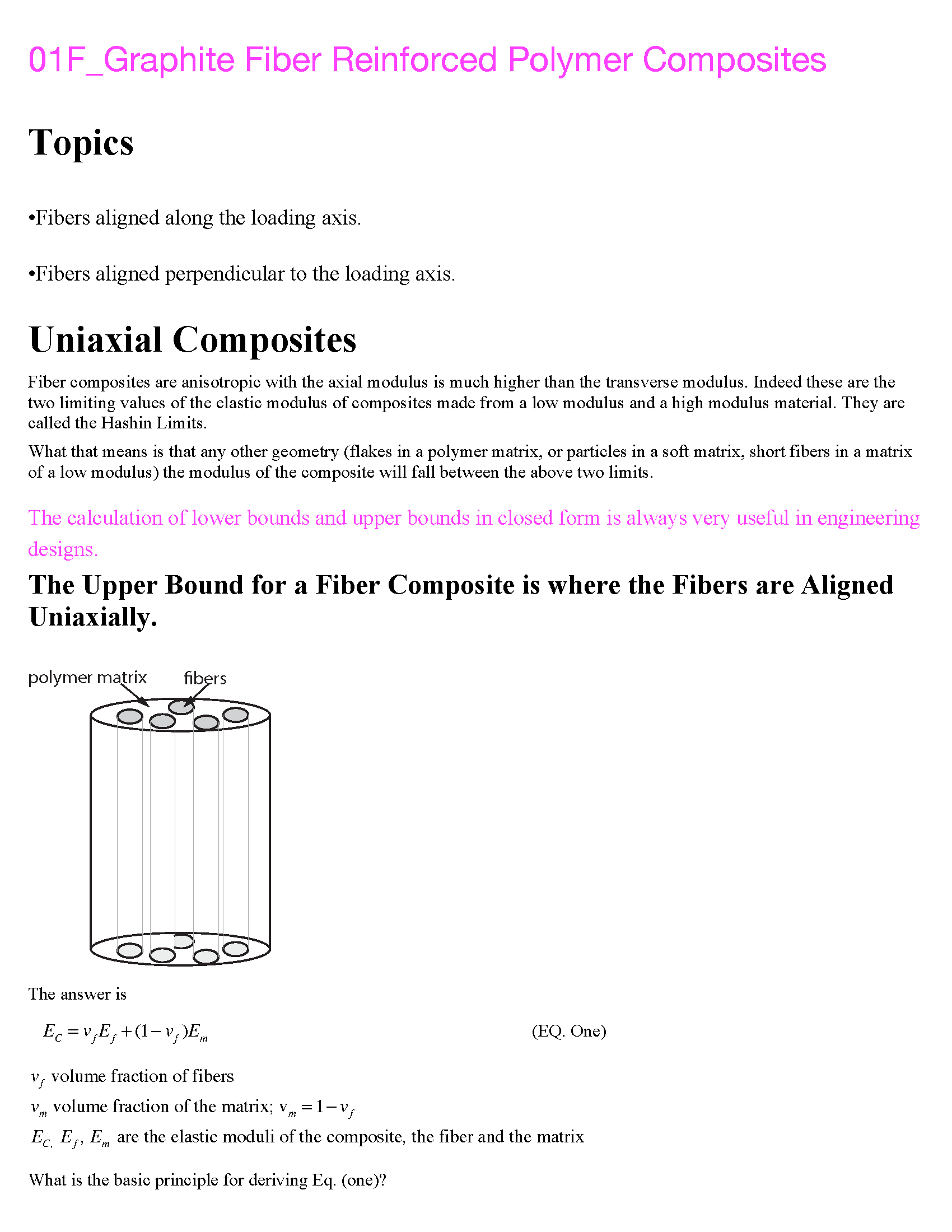

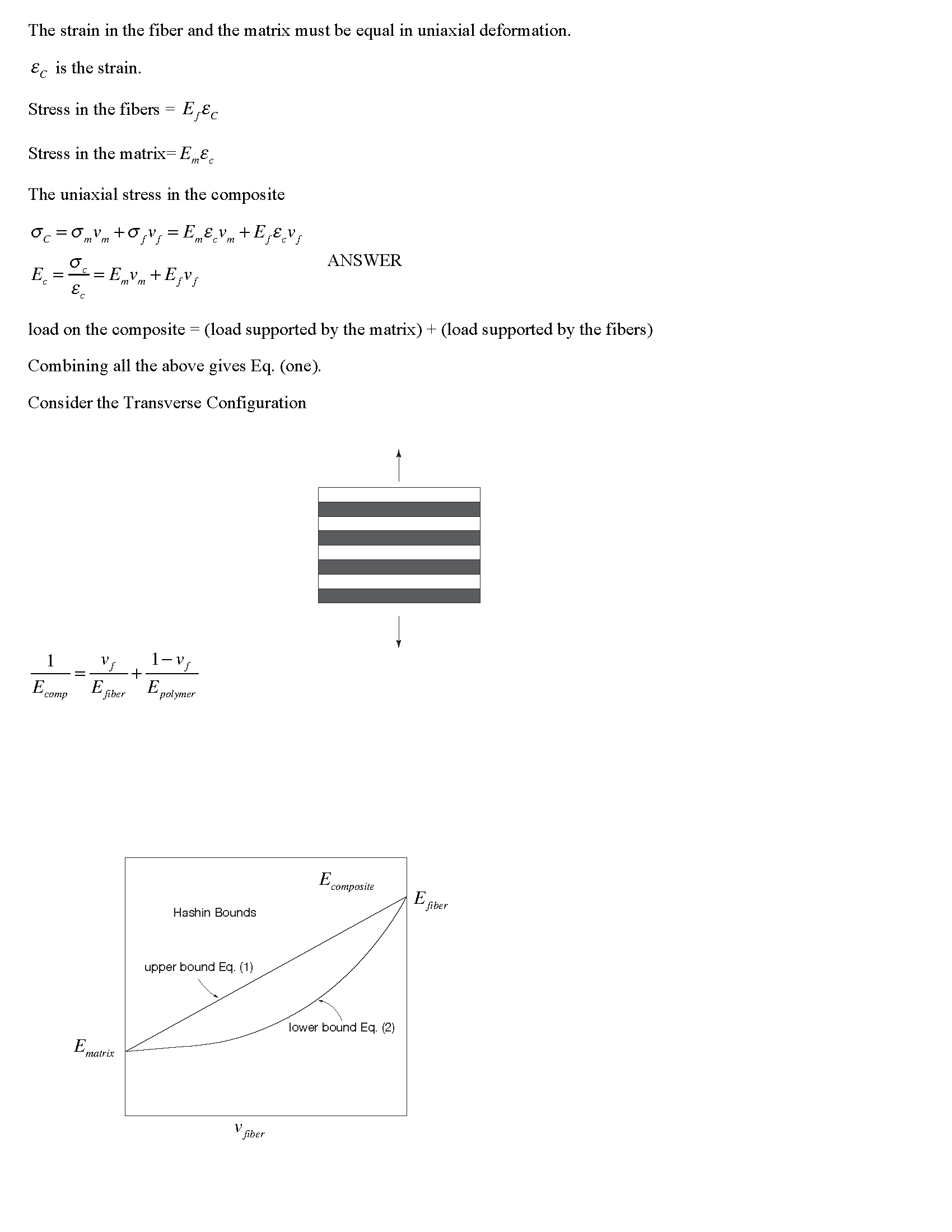

gfrp-1 gfrp-2
GO TO TOP
