SUBMENU




Images showing the full content for these sub-topics are reached by clicking on the links

The PDF files for the above "submenu" links are given just below

PDF file for "Overview"
PDF file for Global Energy Analysis
PDF file for Energy Analysis for a Penny Shaped Crack
PDF file for Fracture at Crack Tips
PDF file for CTOD and Plastic Zone Size
PDF file for Subcritical Crack Growth
Paper: Michalske and Bunker 1967 Scientific Americab

Zoom Links are given just below

Monday Lectures 4:10 PM
Wednesday Lectures 4:10 PM

Topic III - Fracture




Ductile, Brittle and Semi-Brittle Fracture

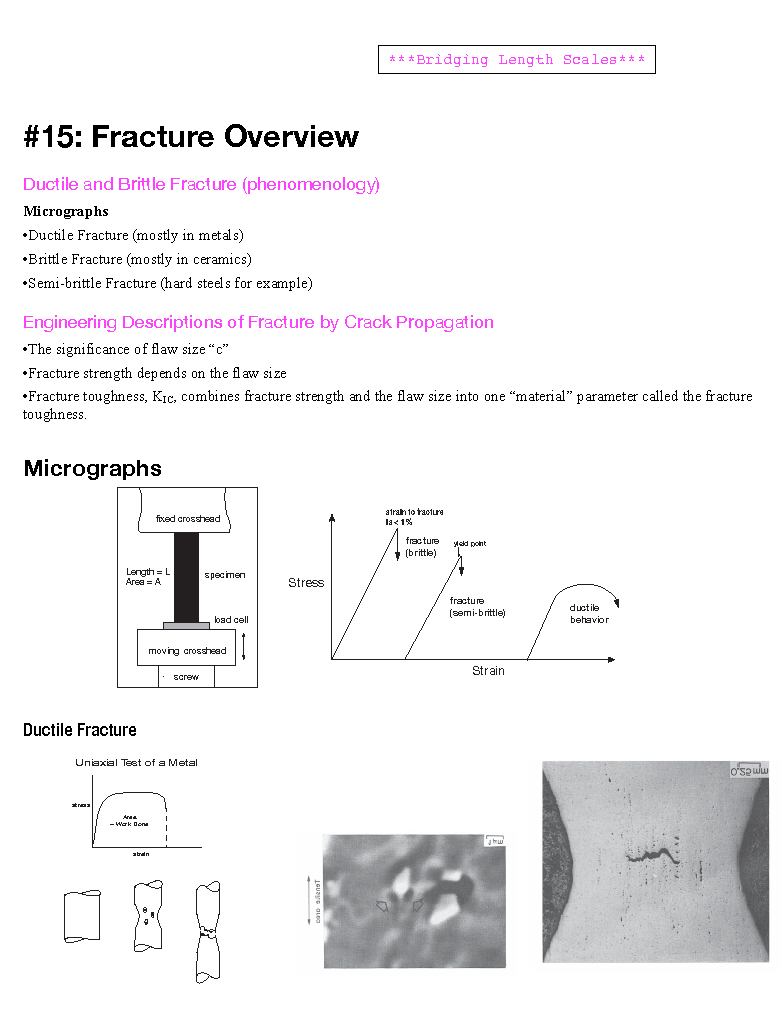

overview-1

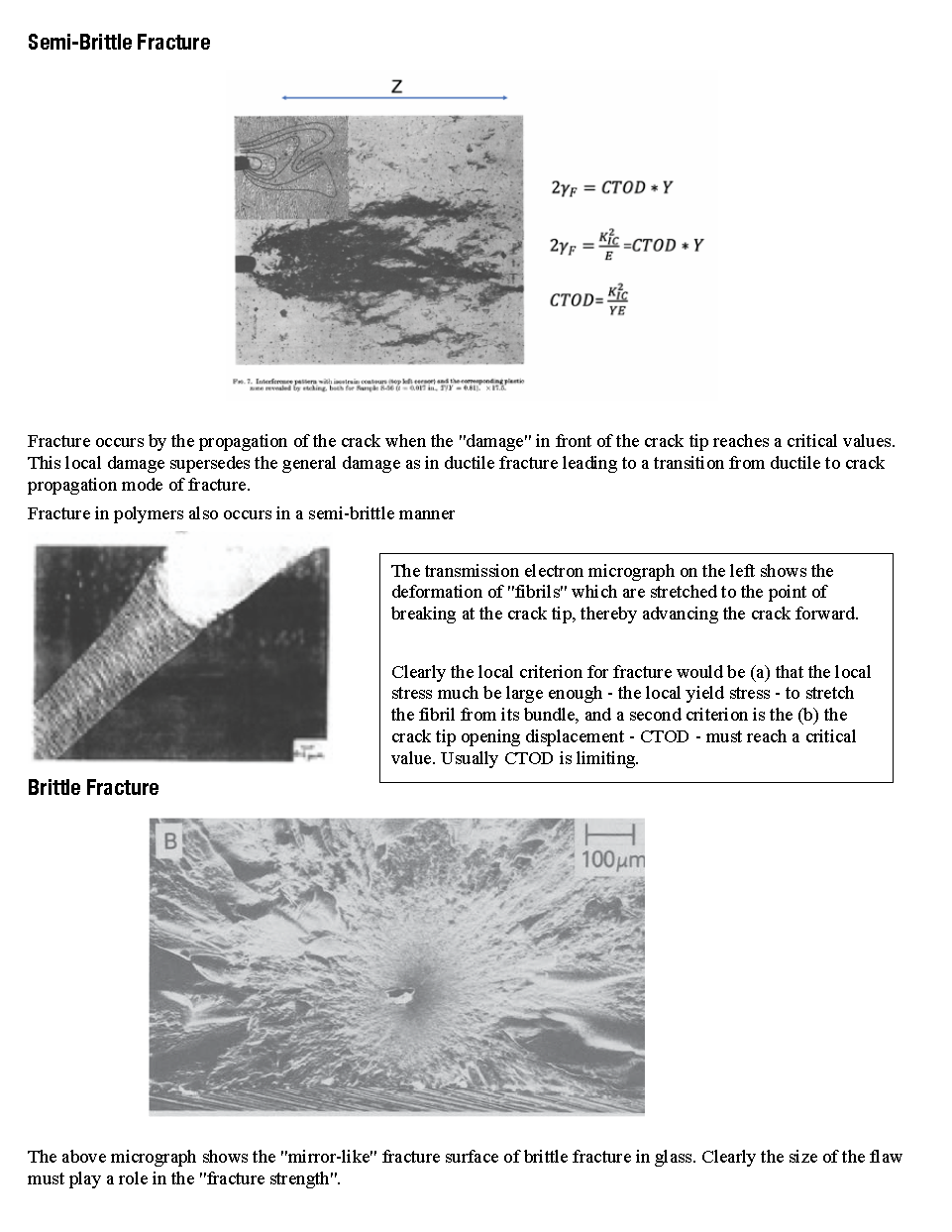

overview-2

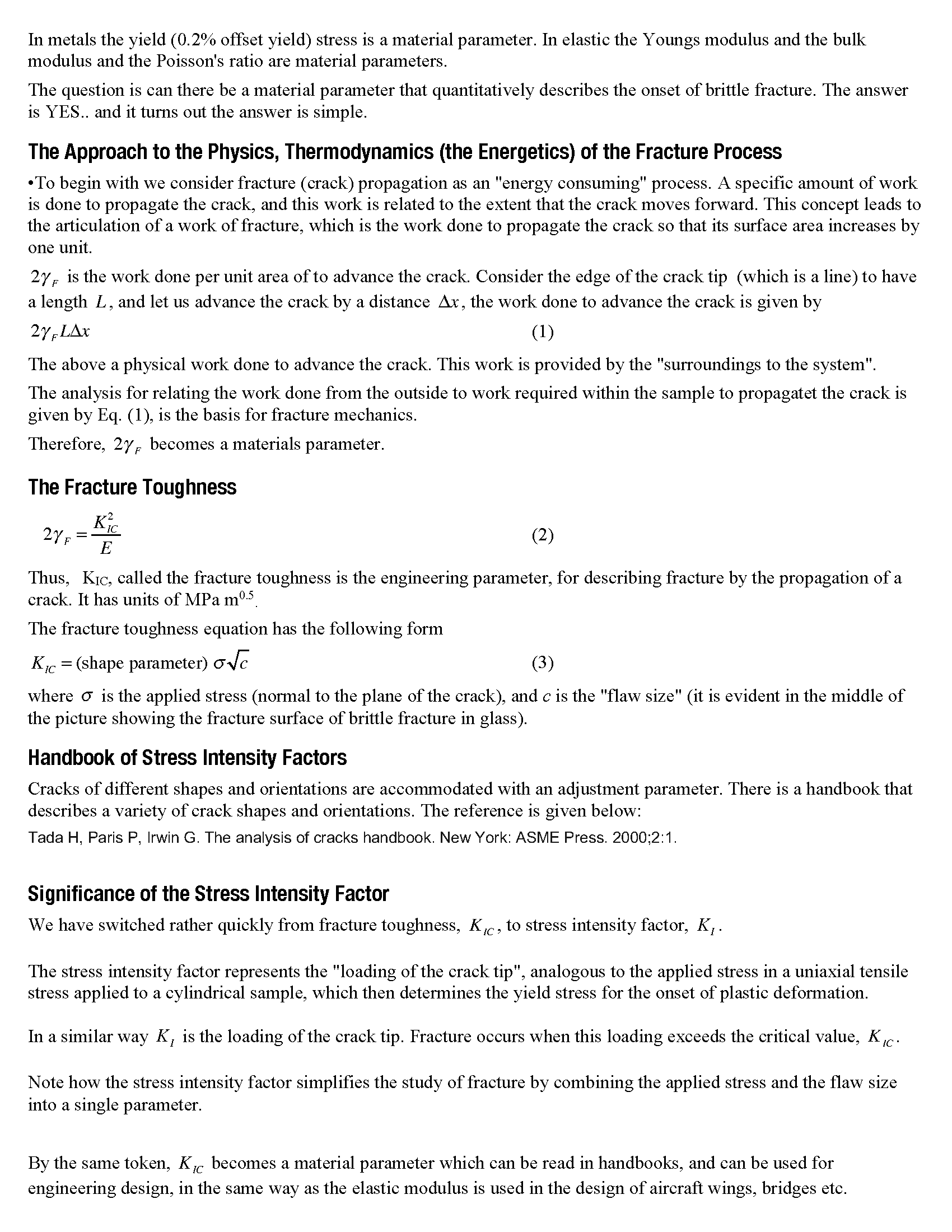

overview-3

GO TO TOP

Global Analysis of Critical Onset of Brittle Fracture

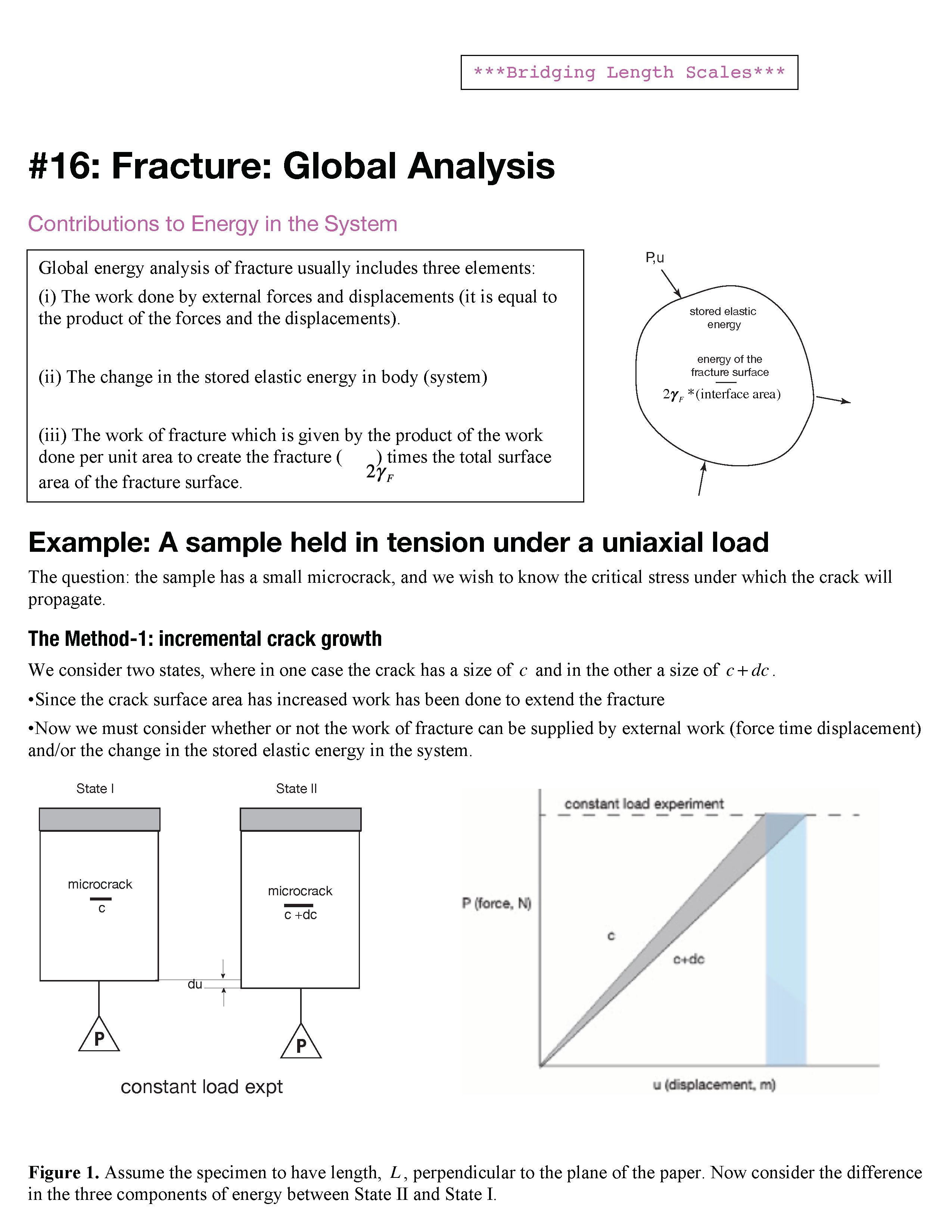

global-1

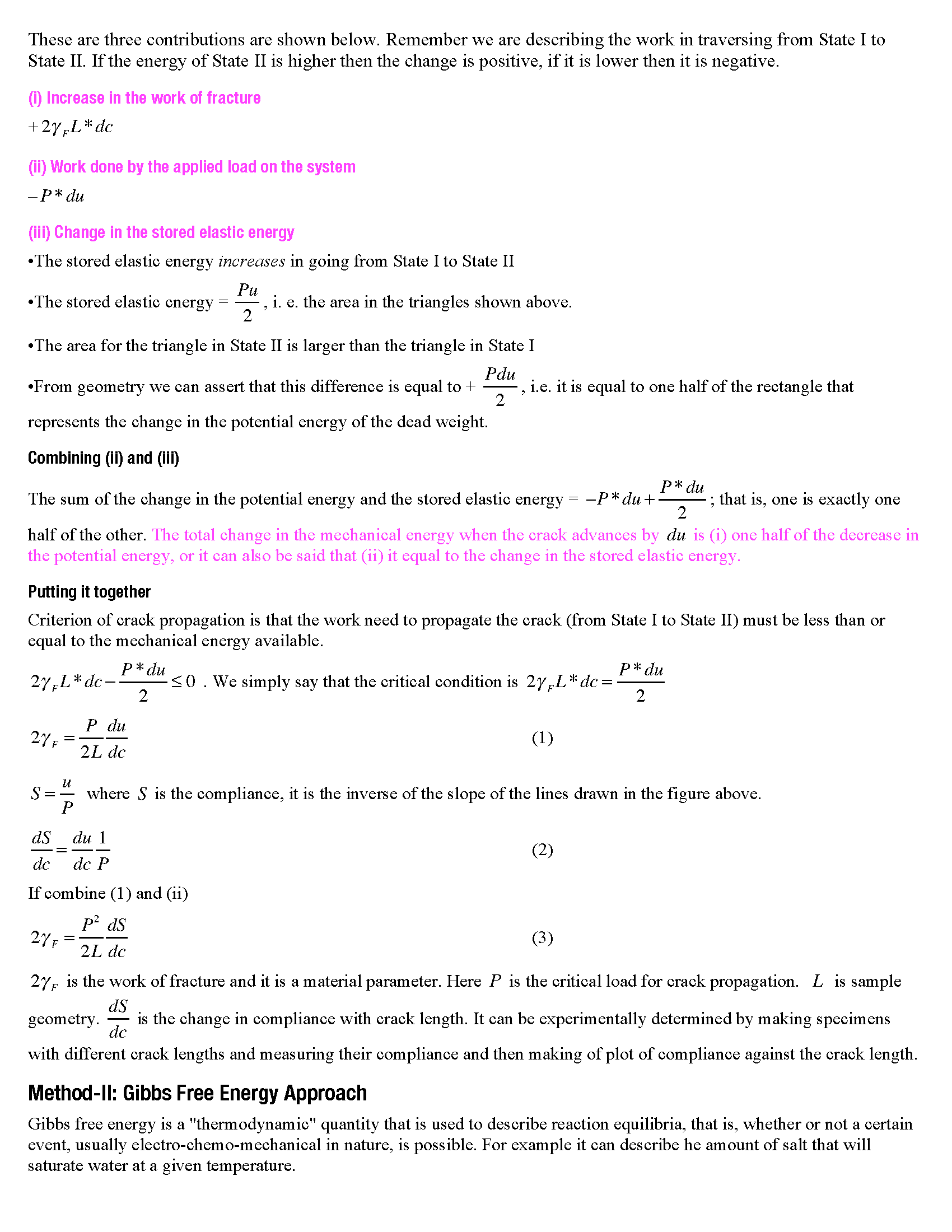

global-2

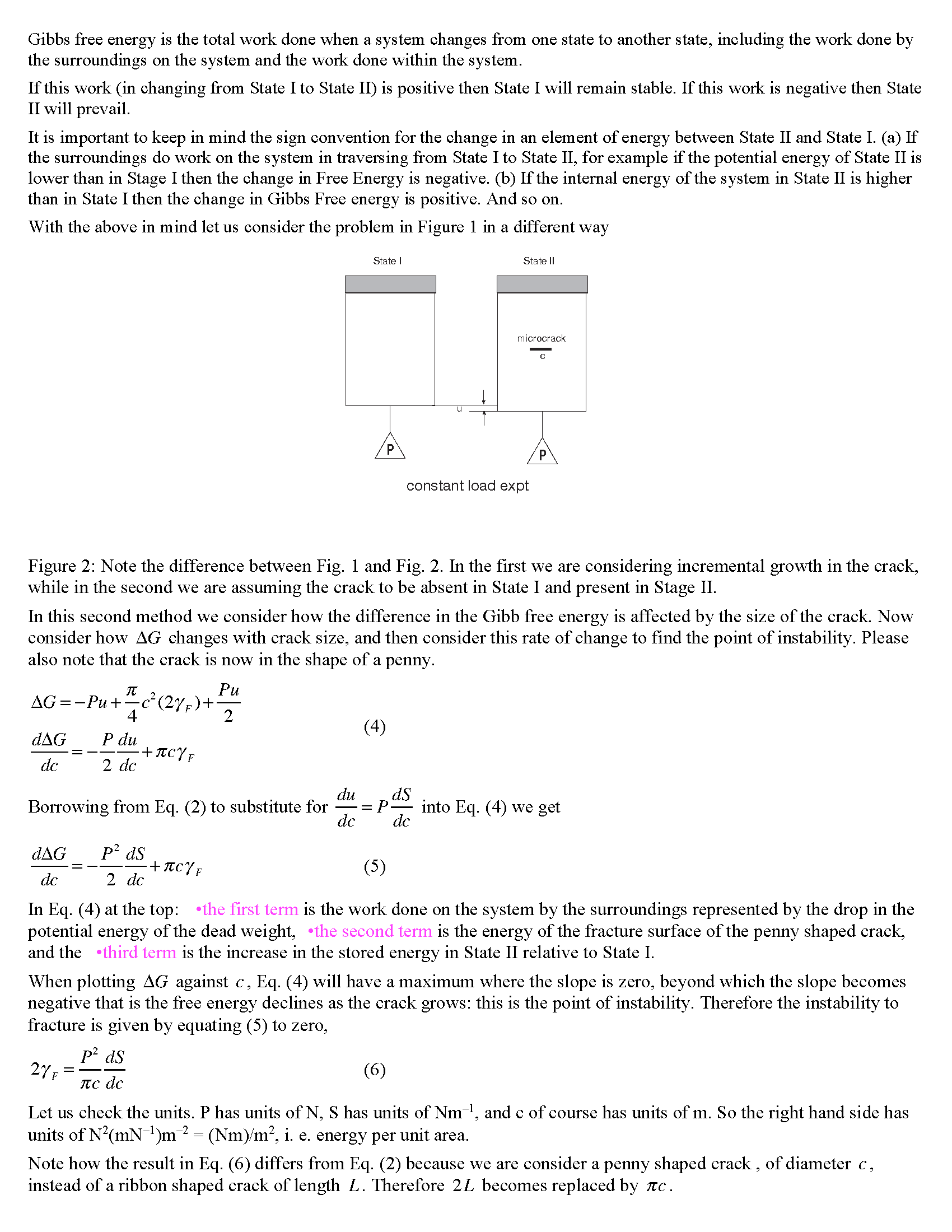

global-3

GO TO TOP

Fracture Toughness arising from the Analysis of a Penny Shaped Flaw

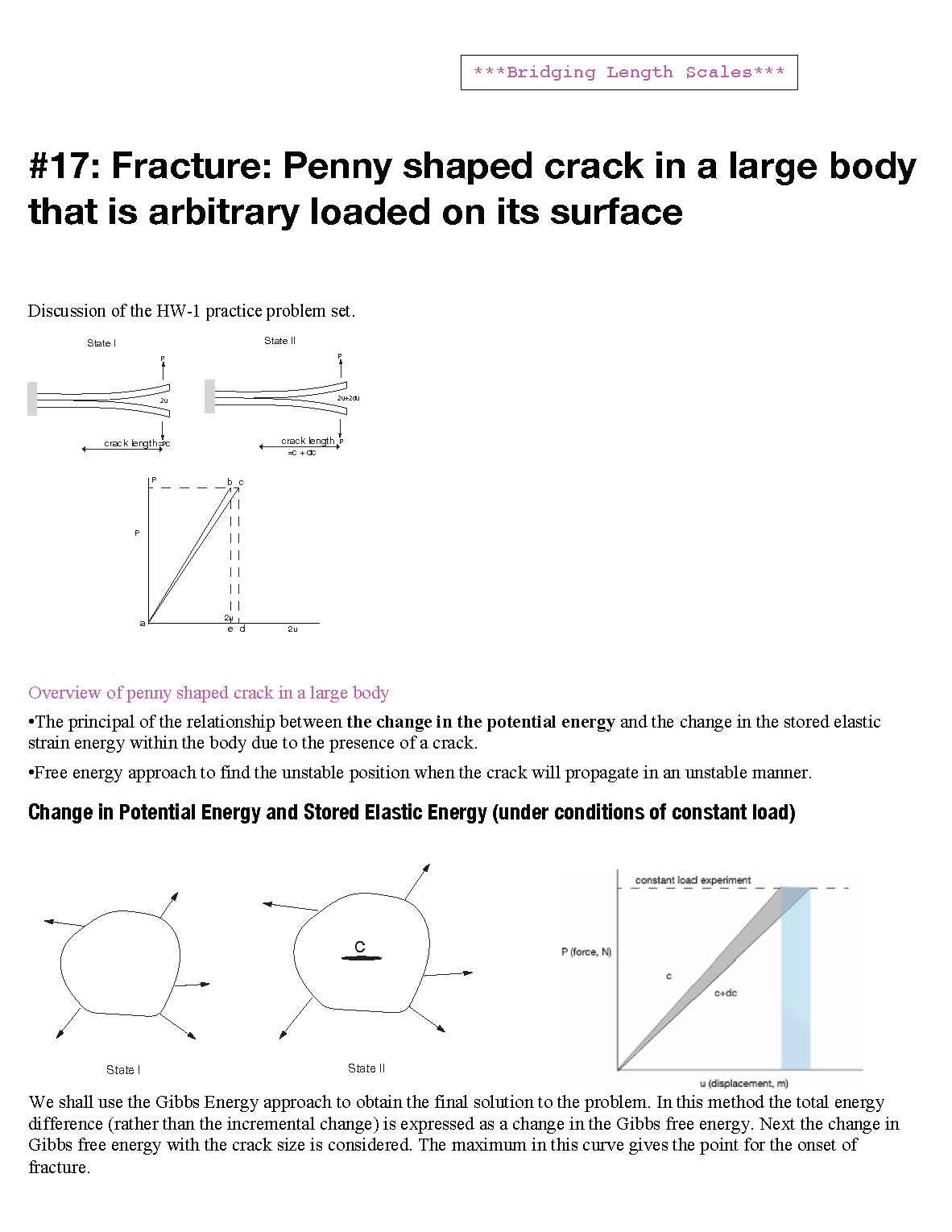

penny-1
penny-2

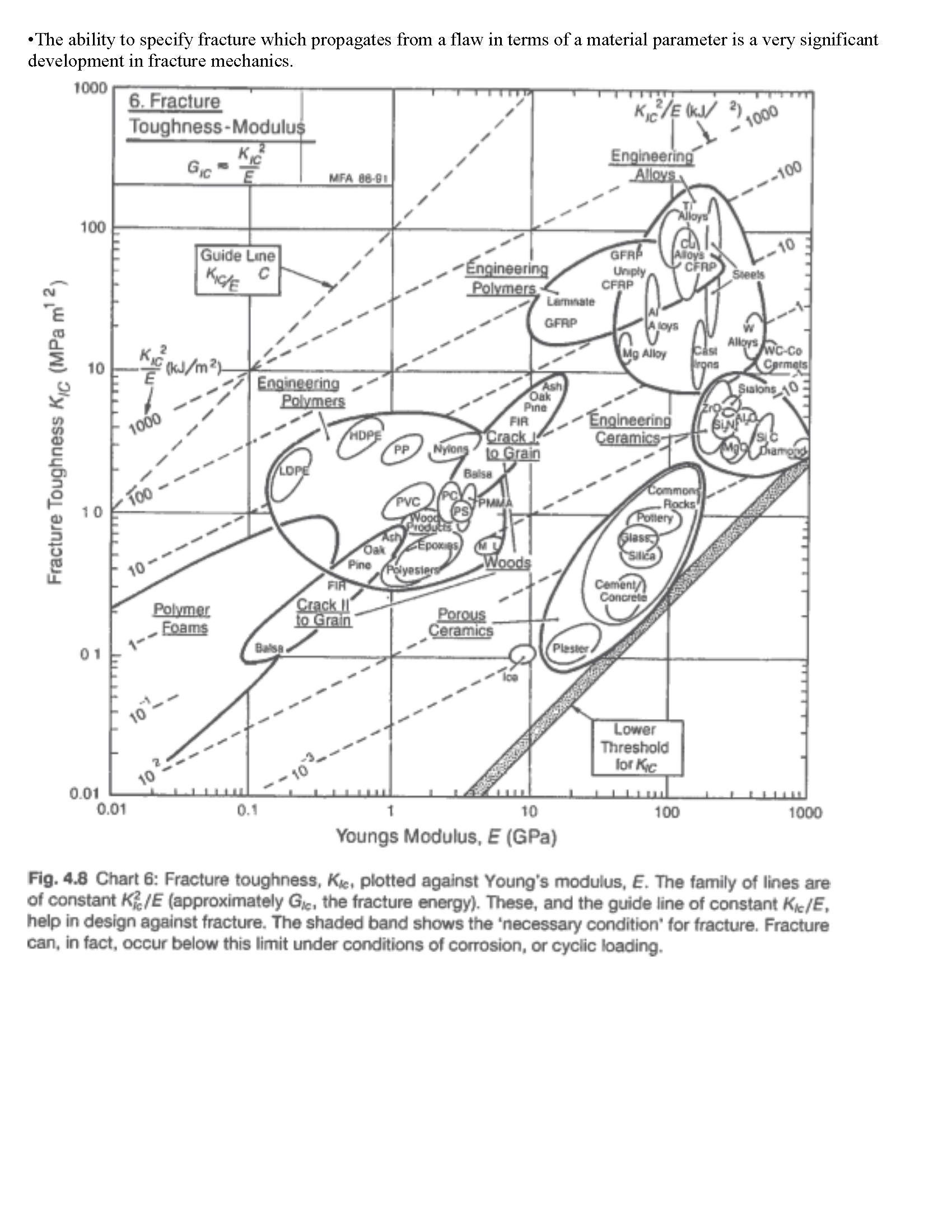

penny-3

GO TO TOP

Fracture mechanism at the crack tip to model the work of fracture

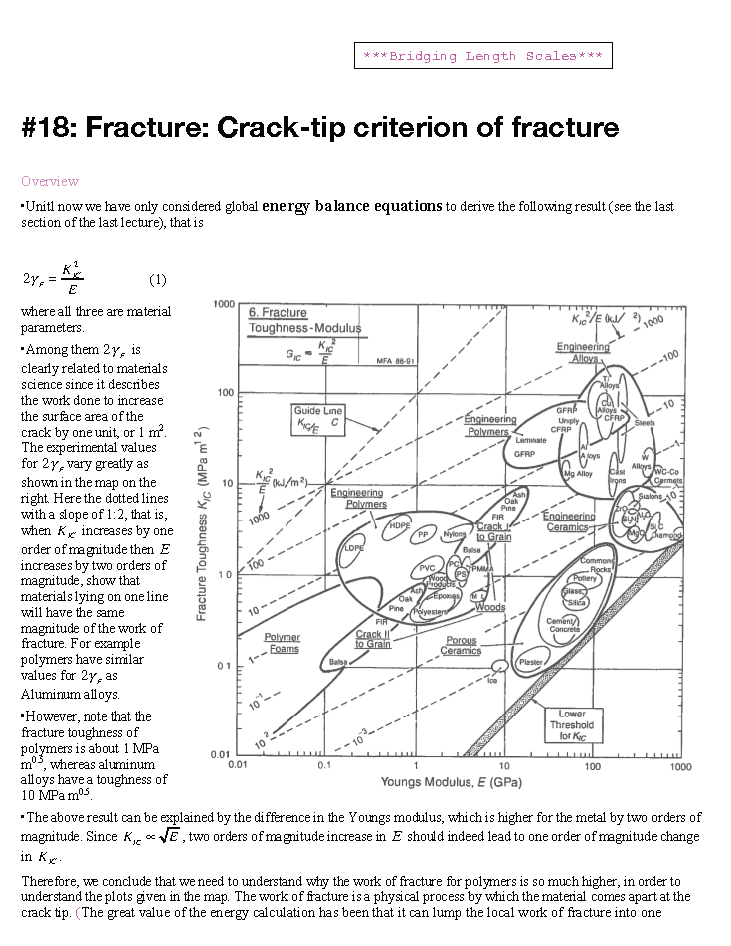

tip-1
tip-2
tip-3
tip-4

GO TO TOP

Crack Tip Opening Displacement and Plastic Zone Size

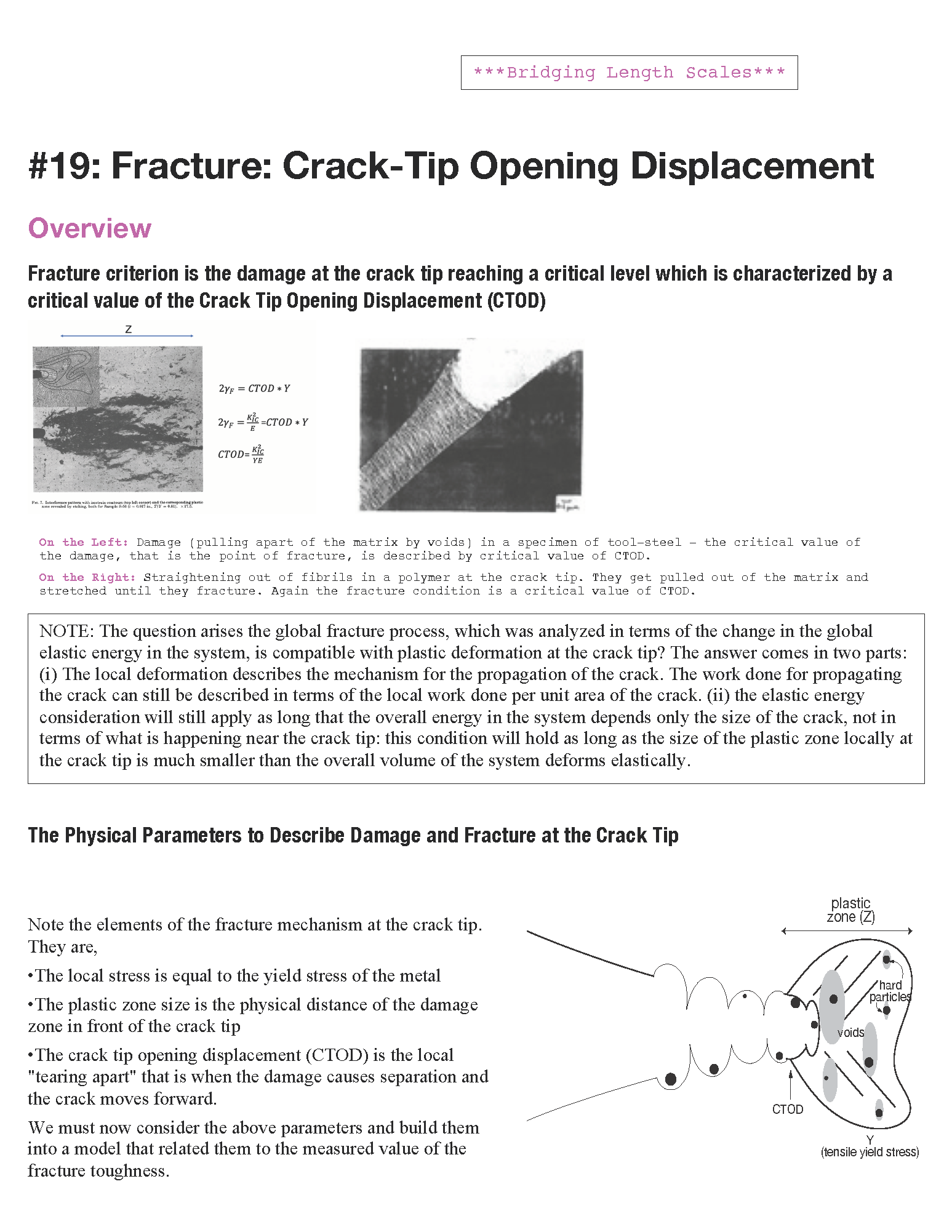

ctod-1
ctod-2

GO TO TOP

Subcritical Crack Growth

subcritical-1

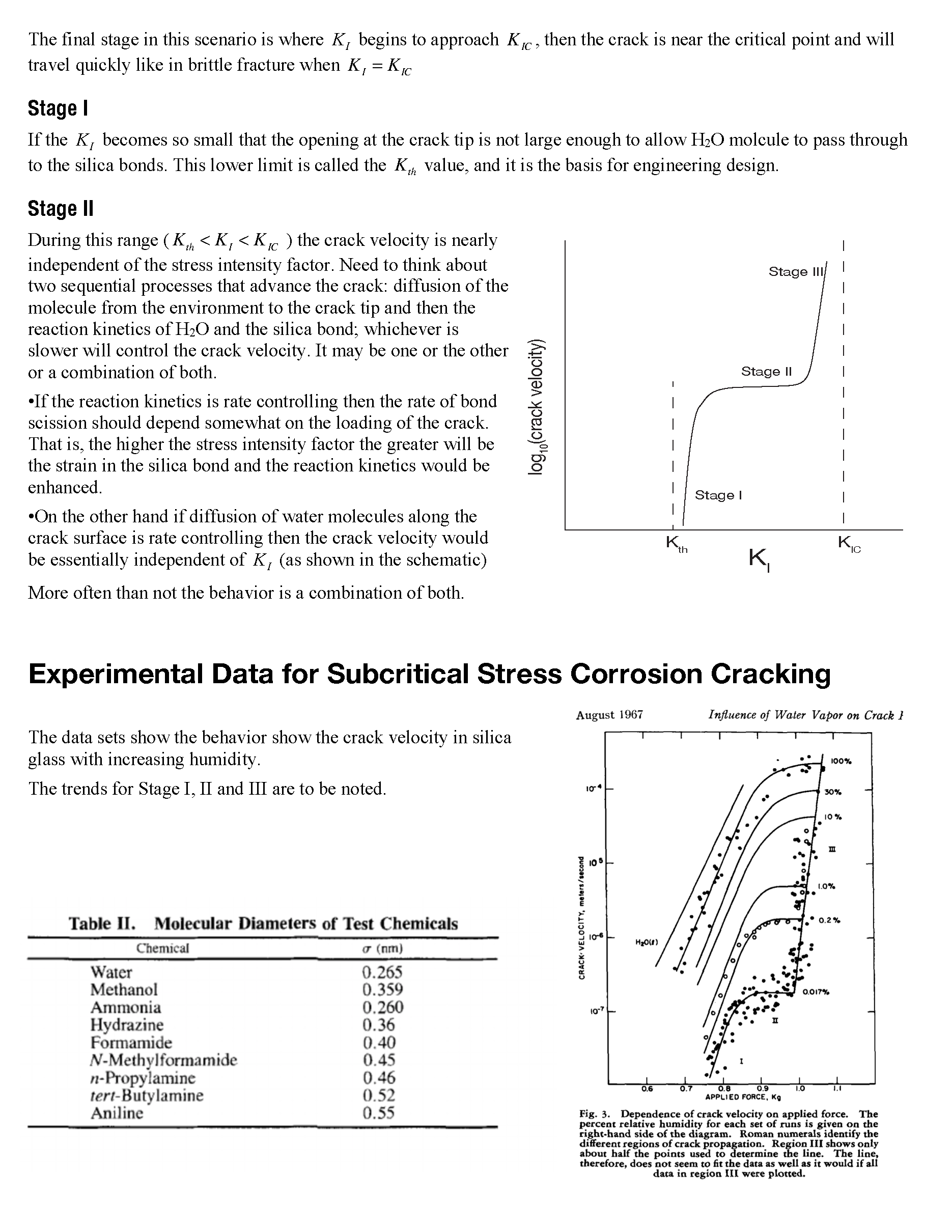

subcritical-2
subcritical-3

GO TO TOP
